Detect trees of green, and red roses too with the new Adafruit AS7262 6-Channel Visible Light/Colour Sensor Breakout.
This sensor from AMS has 6 integrated visible light sensing channels for red, orange, yellow, green, blue, and violet. These channels can be read via the I2C bus as either raw 16-bit values or calibrated floating-point values. There is also an on-board temperature sensor that can be used to read the temperature of the chip, and a powerful LED flash to reflect light off objects for better colour detection.
The 6 channels on the AS7262 are realized by silicon interference filters at 450nm, 500nm, 550nm, 570nm, 600nm, and 650nm. This breakout uses the I2C interface on the chip by default, but a UART interface that accepts AT commands is also selectable.

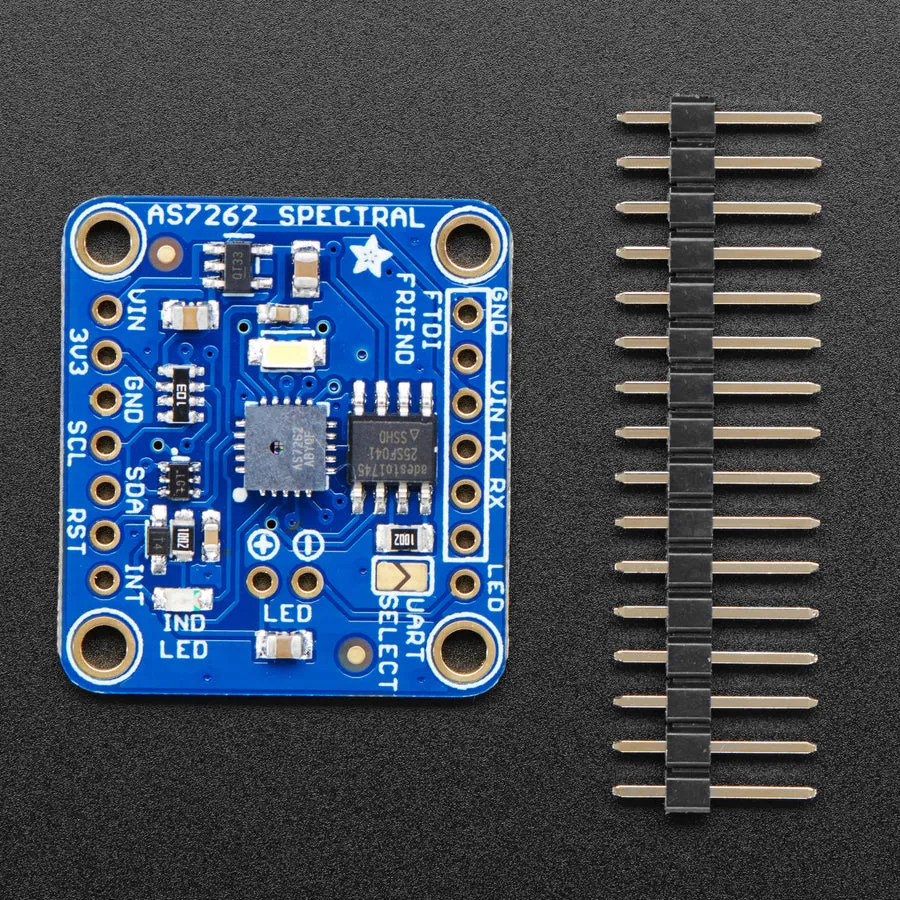

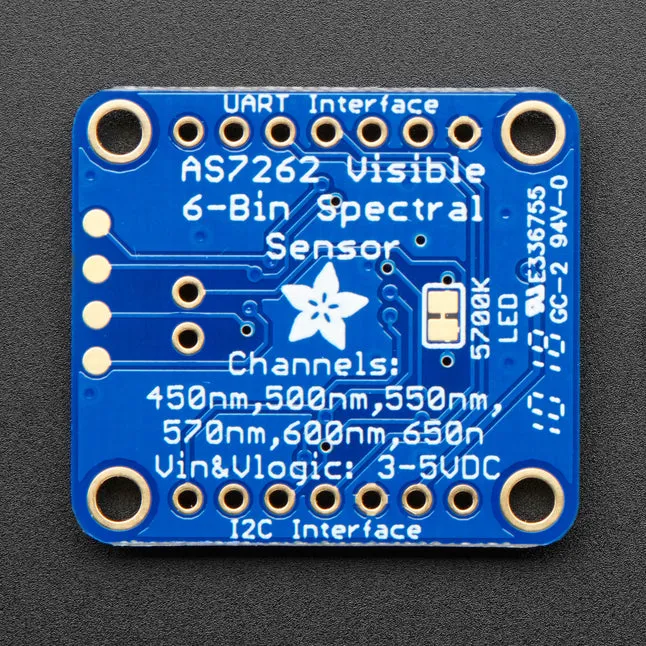

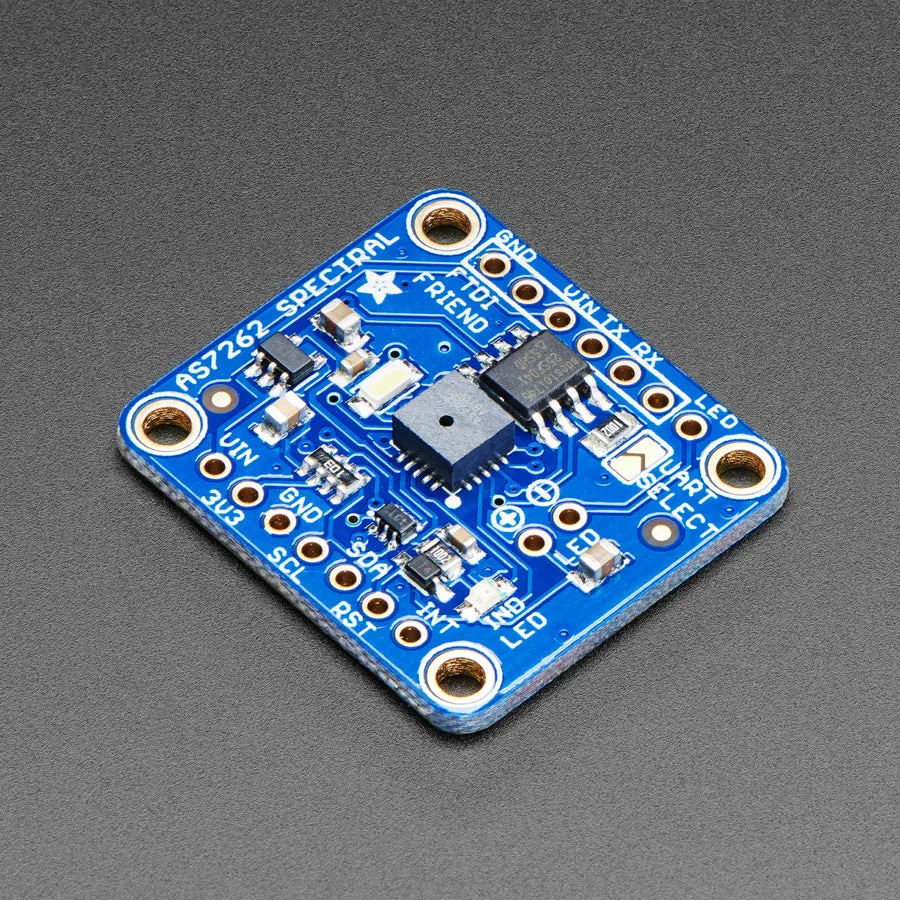

Adafruit have placed the sensor on a PCB for you and included an SPI flash chip pre-programmed with the device firmware, a 3.3V regulator, I2C level shifting, and the recommended LED flash. Both the I2C and UART interfaces are broken out, making this breakout an excellent all-in-one solution for all your colour-sensing needs. The pinout for the UART interface is plug-and-play compatible with the Adafruit FTDI Friend.
TECHNICAL DETAILS
- Product Dimensions: 27.8mm x 25.0mm x 3.9mm / 1.1" x 1.0" x 0.2"
- Product Weight: 2.6g / 0.1oz
