Description:

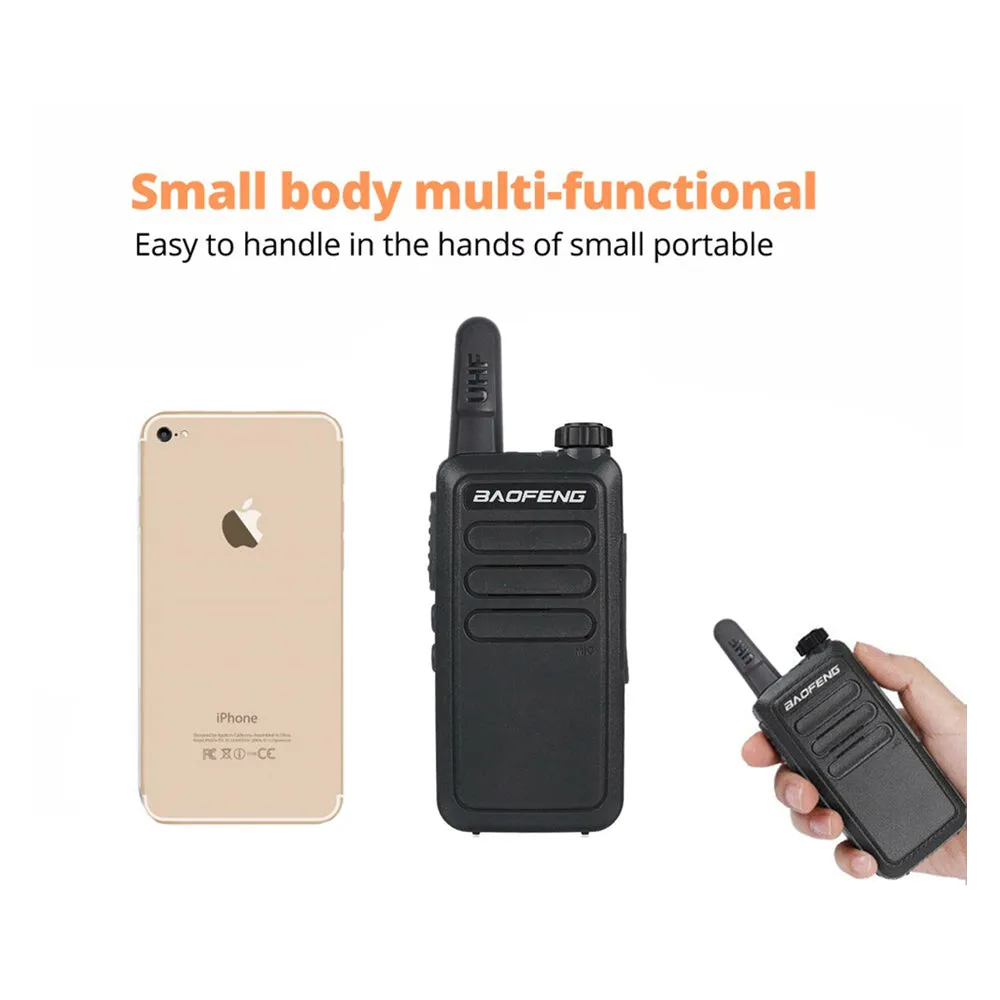

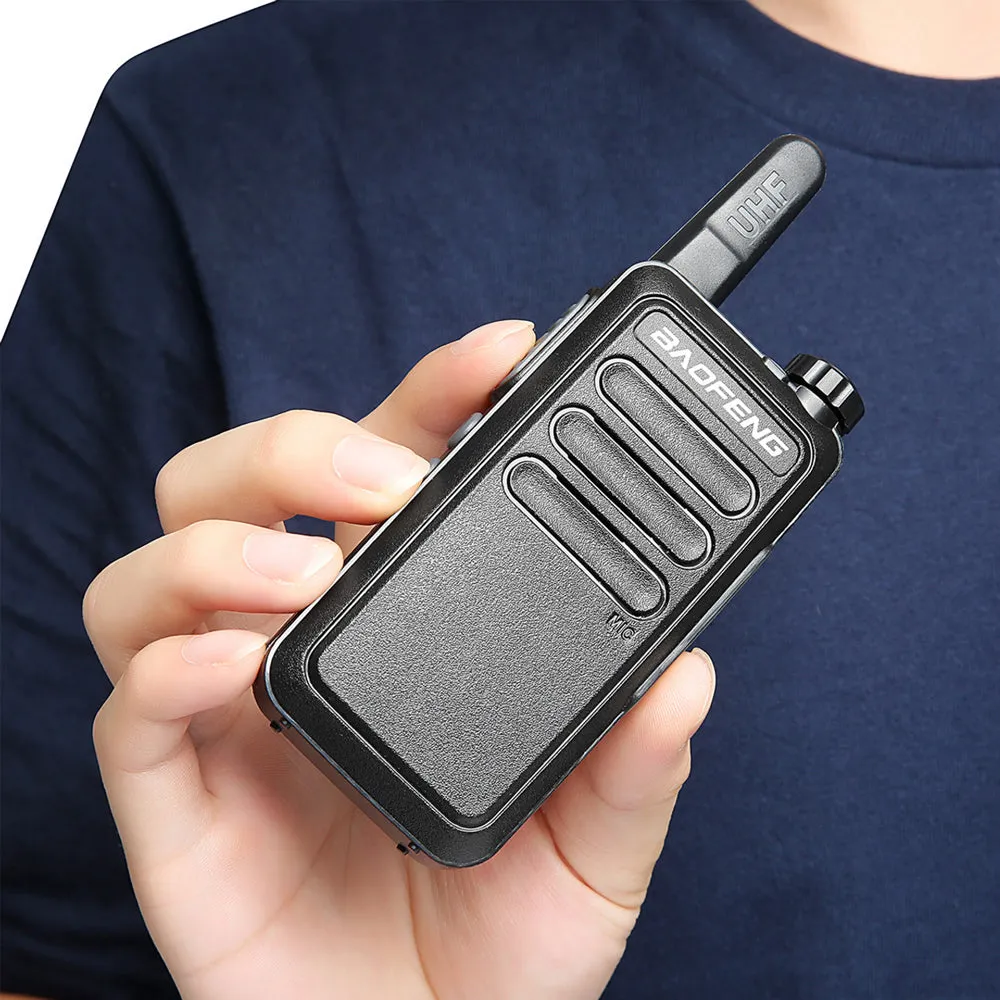

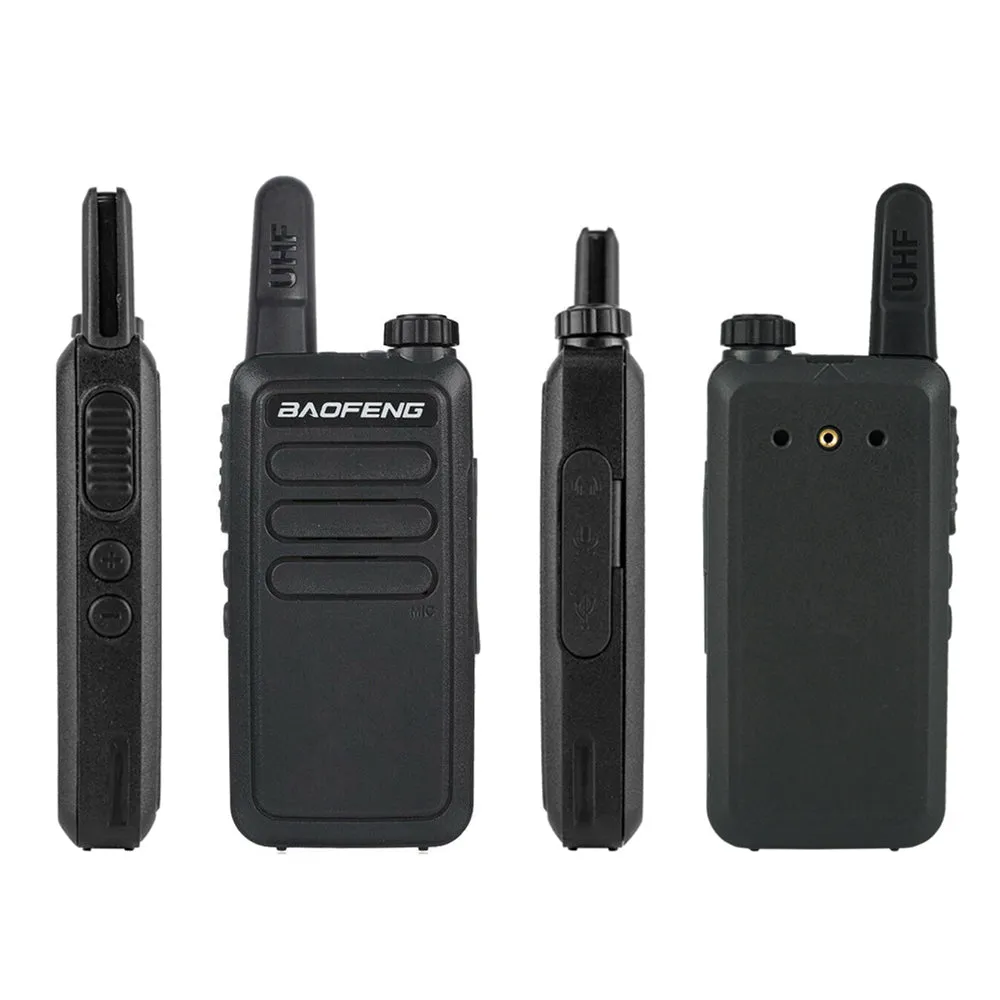

Baofeng BF-R5 Two Way Radio is Mini Walkie Talkie. This item is portable walkie-talkie, easy to be carried and license free. The communication distance is from 1km to 5km.

Features:

• Frequency range 400-470MHZ
• Up to 16 Channels
• Chinese/English Language
• 50 Groups CTCSS，105 Groups of standard DCS
• Time-out timer(TOT)
• Wide/Narrow band
• Battery saving function
• Busy Channel Lockout (BCL)
• Low Battery Voltage Warning
• Programmable by PC

SPECS:

• Frequency range UHF400-470MHz
• Memory channels 16 Groups
• Operation voltage DC 3.7V
• Frequency stability ±2.5ppm
• Operation temperature -20℃— 50℃
• Mode of operation Simplex
• Antenna impedance 50Ω

TRANSMITTER
RF Power 2W
Maximum deviation ≤±5KHz
Spurious emission ≤-60dB
Transmission current ≤1000mA
Pre emphasis Character 6dB per octave

RECEIVER
Sensitivity <0.16uv (12dB SINAD)
Squelch Sensitivity <0.2uv
Audio power ≥380mW
Audio distortion <10%
Intermediation(W/N) ≥65dB
Receiver current ≤380mA
