Product Details
＋

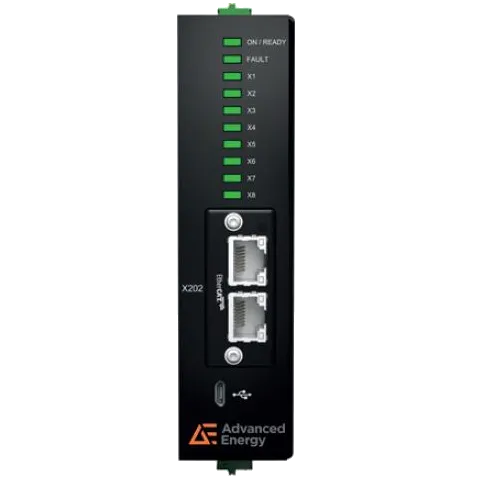

Advanced Energy Thyro Series Communication Basic Bus Module
(Note: Anybus device not required For Thyro PX Controllers)
- Optional Connection for up to 8 Power Controllers (32 Optional)
- One Address per Module
- Access to controller setpoints, actual points, and parameters
- Transfer of setpoints as float number in physical units
- Control Function of LED's
- 24VDC 200mA Supply
- UL and CE Approved
- Thyro S, Thyro A, Thyro AX
- Note Requires for dASM Mode(TAKT Control Only)
Communication Options :
- Ethernet (Inc Ethern/IP/Profinet/Modbus TCP
- Profibus DPV1
- Modbus RTU
- DeviceNet
Specification
| Advanced Energy Part Numbers | 2.000.190.002,2.000.190.003 |
| Functions | Access to controller setpoints, actual points, and parameters Transfer of setpoints as float number in physical units Control Function of LED's |
| Supply Voltage | 24VDC |
| Protocols |
EthernetIP, Profinet, Modbus TCP ProfibusDPV1, ModbusRTU, DeviceNet (with Suitable Anybus Module) |
| No. of Communication Ports | Up to 8 |
| Weight | 750g |
| Factory Pack Qty | 1 |
| Approvals |
CE, UL |
| Operating Temperature | -20 → 70 °C |
