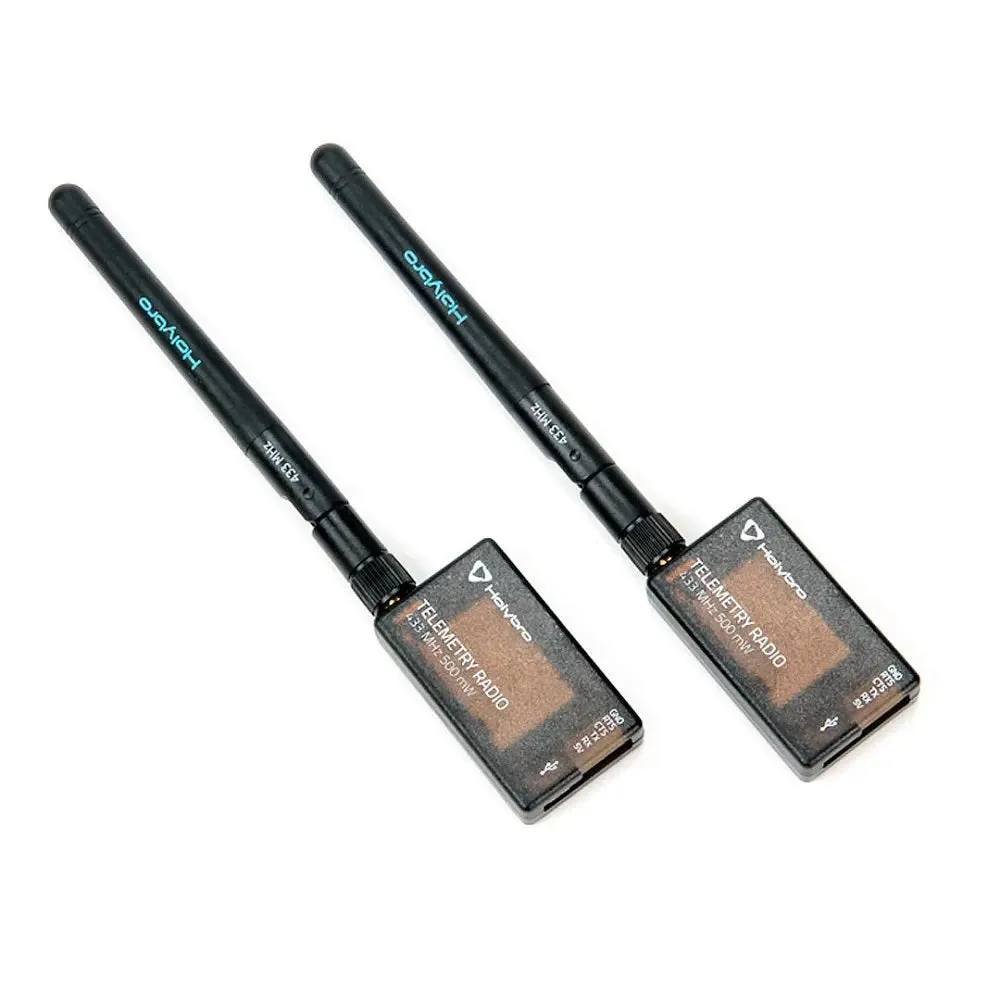

This Holybro SiK Telemetry Radio is a small, light, and inexpensive open-source radio platform that typically allows ranges of better than 300m “out of the box” (the range can be extended to several kilometers with the use of a patch antenna on the ground). This radio is plug-n-play all Pixhawk Standard and other Flight Controller, providing the easiest ways to set up a telemetry connection between your Autopilot and a ground station. It uses open-source firmware which has been specially designed to work well with MAVLink packets and to be integrated with the Mission Planner, Ardupilot, QGroundControl, and PX4 Autopilot. The radio is 433Mhz and you should purchase this model which is appropriate for your country/region.

Note: Dimensions exclude antennas.

Features:

Open-source SIK firmware
Plug-n-play for Pixhawk Standard Flight Controllers
The easiest way to connect your Autopilot and Ground Station
Interchangeable air and ground radio
Micro-USB port (Type-C Adapter Cable Included)
6-position JST-GH connector
100 mW maximum output power (adjustable) -117 dBm receive sensitivity
RP-SMA connector
2-way full-duplex communication through adaptive TDM UART interface
Transparent serial link
MAVLink protocol framing
Frequency Hopping Spread Spectrum (FHSS) Configurable duty cycle
Error correction corrects up to 25% of bit errors Open-source SIK firmware
Configurable through Mission Planner & APM Planner
FT230X/FT231 is a USB to BASIC UART IC
FCC IDENTIFIER: 2AP22-HT03-V3

Package Include:

2 × Radio modules with antennas
1× Micro-USB to USB-A cable
1×Micro-USB to Micro-USB OTG adapter cable
1× Micro USB to Type C Adapter
1× JST-GH-6P to JST-GH-6P cable (for Pixhawk Standard FC)
1 × JST-GH-6P to Molex DF13 6P (for Pix32, Pixhawk 2.4.6, etc.)

Specification:-
