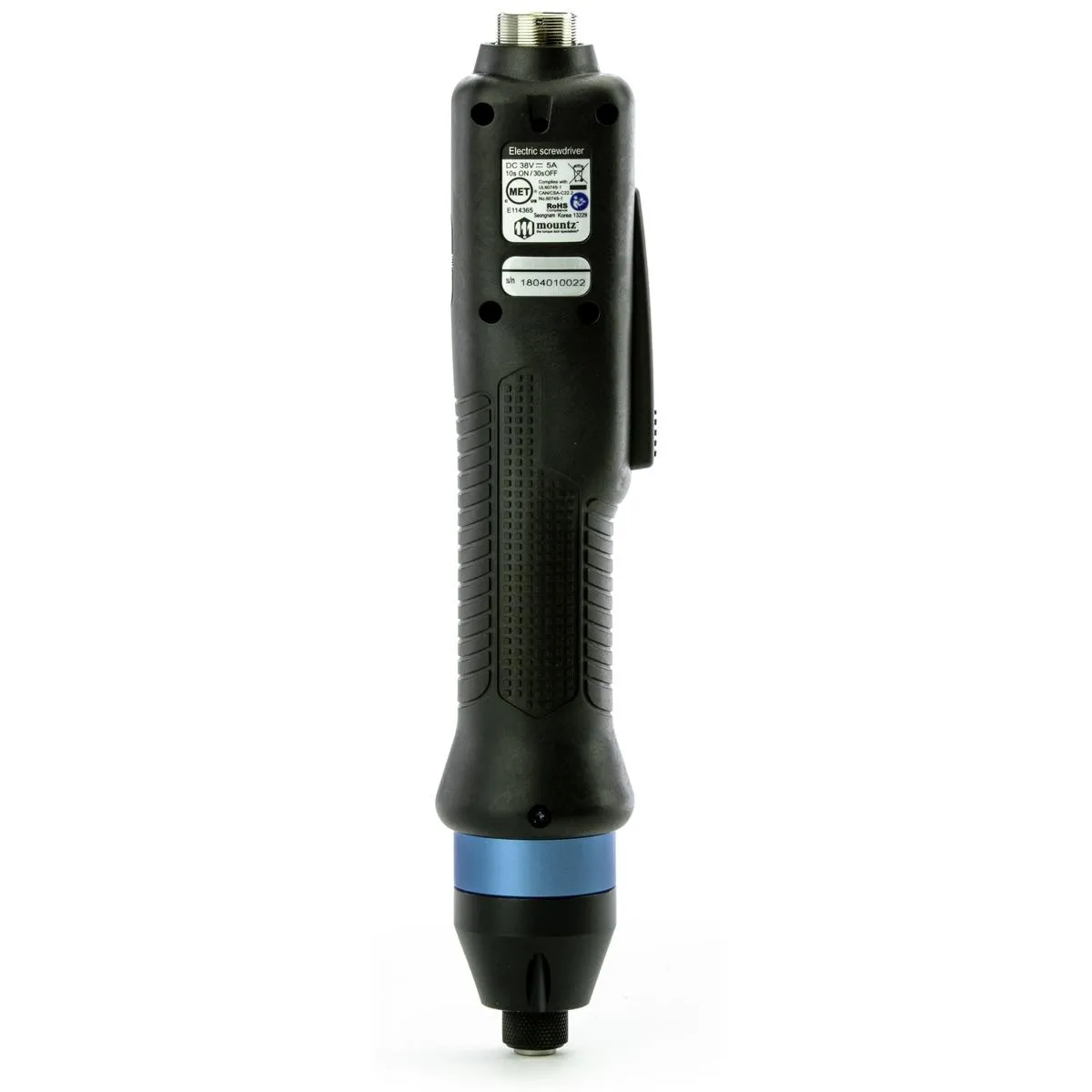

Name: Mountz MD2601-A Electric Screwdriver MD-Series In-Line Models
SKU: 2353425

Product Details ＋

Specs

Model:

MD2601-A

Item #:

310005

Drive Size:

1/4" F/Hex

American:

0.26 - 3.4 lbf.in

S.I.:

2.9 - 38.4 cN.m

Metric:

0.3 - 4 kgf.cm

Tool Weight:

1 lb.

Tool Length:

Minimum Adjustable RPM Range:

150

Maximum Adjustable RPM Range:

2000

Grip Dia:

1 1/2"

The MD2601-A electric screwdriver features a high-performance Swiss DC servo motor design that provides consistently repeatable process control and eliminates potential variations. These electric torque screwdrivers are engineered for automation assembly applications that provide manufacturers with a rapid, reliable, and precise method of fastening screws. The high-performance torque fastening system allows manufacturers to optimize the assembly area, reduce labor costs, and increase productivity. Multiple fastening strategies can be implemented for sensitive and/or difficult assembly joints. The system increases productivity as one tool can be programmed to do the job of multiple conventional tools; saving time, maintenance cost, space, and training. The tool operates only with the .

Electric screwdriver is engineered for automation applications that provide manufactures with a rapid, reliable and precise method of fastening screws.
Reduces the production cycle.
Production flexibility and rapid reconfiguration for new production projects.
Swiss DC servo motor provides precise, accurate and repeatable torque control.
Low maintenance with an extended life cycle.
Requires .
Low inertial force provides smooth reaction-less operation with little G force to assembled parts.
Lever start tool.
Increase productivity with one tool instead of 2 - 15 tools.
Easy integration into production line. Rapid reconfiguration for new production projects.
Optimum asset utilization. Tooling expense delivers favorable return of investment.
Traceability and error-proofing. Real time monitoring.
MDC Controller has digital I/O signals for communication with external devices such as PLC.
memory: Up to 30 process sequences with 20 program steps. Collect and save all fastening data on SD memory card.
MDC Controller provides fastening torque data analysis (Standard Deviation, Mean, Average, CP, CPK ).
MDC Controller is fully programmable via the touch screen.
Certified and documented fastening results. Supplied with free certification.
Operate a leaner production environment with flexible, configurable tool set up.
Make fastening compliance and documentation easy.

The MD electric screwdriver is supplied with the standard 3 meter length cable. The driver cable connects the MD-Series electric screwdriver to the .

Download the Mountz vacuum system and submit with your request
