Product Description
-
Brighter Graphical Lcd Display For Operation Ease
-
Universal Input Tc / Rtd / Standard Analog
-
Pid/On-Off
-
Auto /self Tuning
-
3 Set Point (relay / Ssr/ Analog Controlling Output)
-
Rs-485 Modbus / Retransmission Output
Product Specification
|
Brand |
Multispan |
|
Product Type |
Temperature Controller |
|
Product Model |

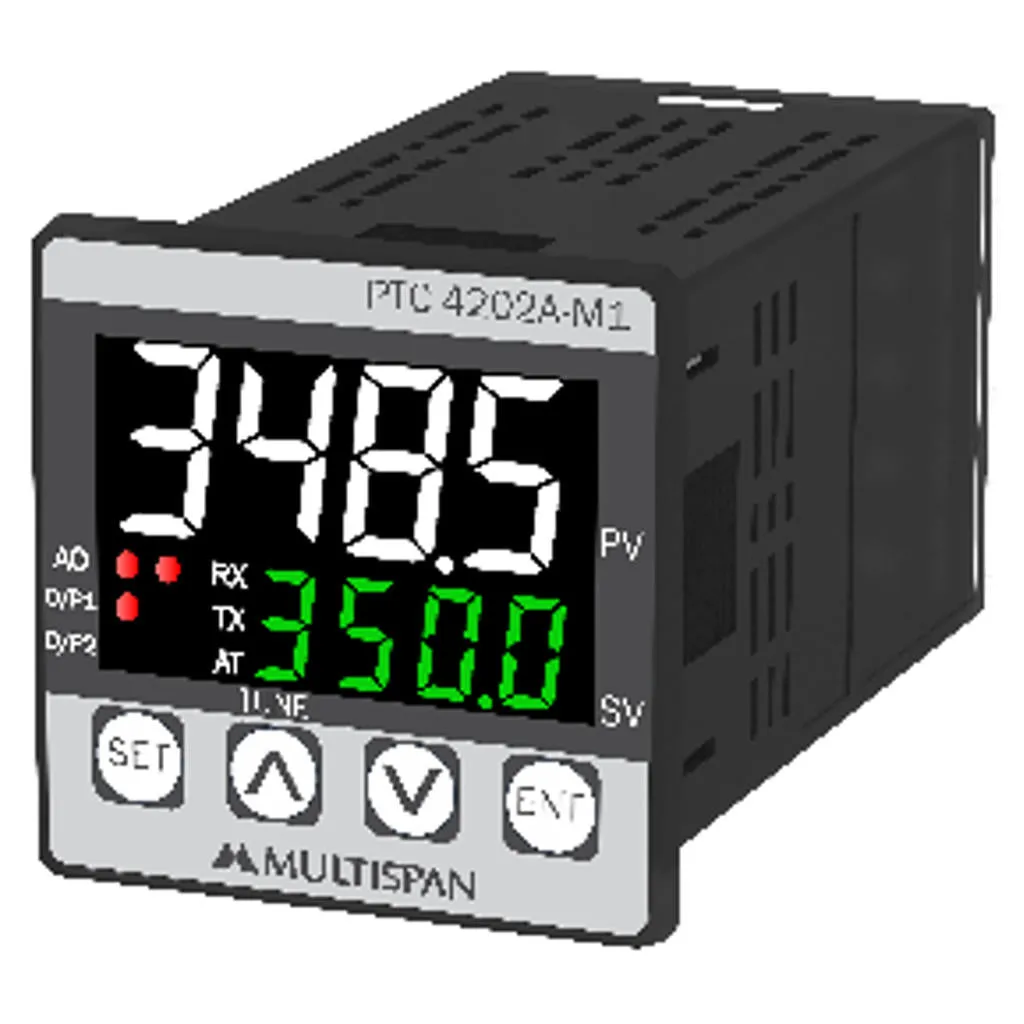

PTC - 4202 A |
|
Input |
|
|
Sensor |
J/K/PT-100 2Wire or 3Wire, 0-10V/ 4-20mA/ 0-20mA(Configurable) |
|
Range |
J(0°C to 600°C), K(0°C to 1200°C) PT-100 (-99°C to 400°C,-99.9°C to 400.0°C) For Temperature Sensor, (-999 to 9999 For Analog Input) |
|
Outputs |
|
|
Output 1 |
1 Relay 1C/O 5A 230V AC(Resistive Load) Or SSR Drive O/P 12V DC,20mA Factory Set |
|
Output 2 |
1 Relay 1C/O 5A 230V AC(Resistive Load) Or SSR Drive O/P 12V DC,20mA Factory Set |
|
Output 3 |
0-10V DC/4-20mA DC (Factory Set)(Controlling/Retrans.Selection) |
|
PC Communication |
RS-485 Modbus Communication (Optional) |
|
Control Action |
PID / ON-OFF(Configurable) |
|
Accuracy |
±1% of FSD |
|
Supply |
100 to 270V AC,50/60Hz |
|
Dimension (HxWxD) |
48 x 48 x 95 mm |
|
Panel Cutout |
45 x 45 mm |
