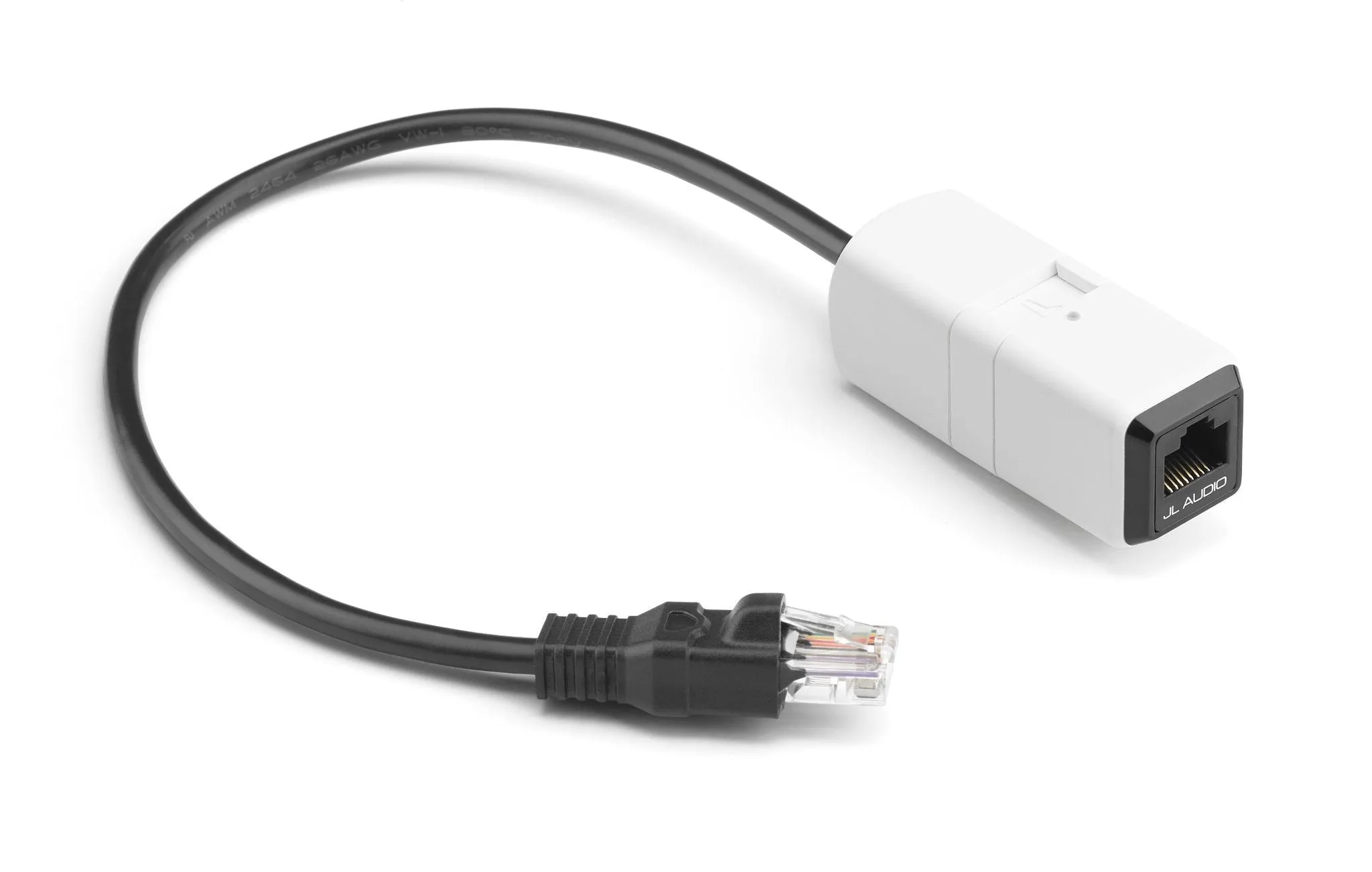

Rotary DRC Adaptor for MVi Amplifiers

Add rotary DRC capabilities to MVi amplifiers with ease.

• Permits direct connection of a DRC-205 rotary controller (non-marine) to a MVi amplifier for convenient remote preset selection, with RGB LED reporting, and adjustment of level, fader and balance from the helm.
• Plugs directly to the JLid-COMM Port of a MVi amplifier
• Powered via the JLid™ connection... no separate power wiring is needed!
• Built-in multi-color LED reports condition and faults

Notes: Not compatible with mono MV amplifiers or the MVi-HUB.This product is not needed for connection of the M-DRC-50 push-button controller.

JLid™

Summary:
JLid™ is JL Audio's protocol for digital controllers and for communication of settings between devices (not for audio signals).

Detailed Information:
JLid™ offers two-way communication for a range of accessories, including the following:

Wired System Controllers: DRC-100, DRC-200, DRC-205, M-DRC-50
Wireless Bluetooth® Communicator: VXi-BTC
Networking Accessory: VXi-HUB, MVi-HUB

JL Audio FiX® and TwK® processors each feature one JLid™ port, designed for connection of a wired controller.

JL Audio VXi and MVi amplifiers offer powerful networking capabilities via JLid™, to deliver single-point control of multiple amplifiers in a system. This allows the listener to adjust levels (Volume, Fader, Balance, Zone Level) and to easily select from multiple DSP presets, across an entire group of networked amplifiers. Each VXi amplifier is outfitted with separate JLid™ Control and JLid™ Comm ports. DSP equipped MVi amplifiers include a single JLid™ Comm port. Please refer to each product’s manual and our Help Center for details.

JLid™ connections are made via standard CAT-5e cables.

USA Limited Warranty:  Two (2) years from the original date of purchase
