Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Connection Type | M8 |
| IP Rating | IP67 |
| Light Source | Red LED |
| Maximum Operating Temperature | 55 C |
| Minimum Operating Temperature | -25 C |
| Operating Temperature, Maximum | 55 C |
| Operating Temperature, Minimum | -25 C |
| Operation | Dark-ON/Light-ON |
| Output | PNP Open Collector |
| Response Time | 1 ms |
| Sensing Mode | Retroreflective |
| Series | |
| Supply Voltage | 12-24 VDC |
| Type | Retroreflective Sensors |
Overview

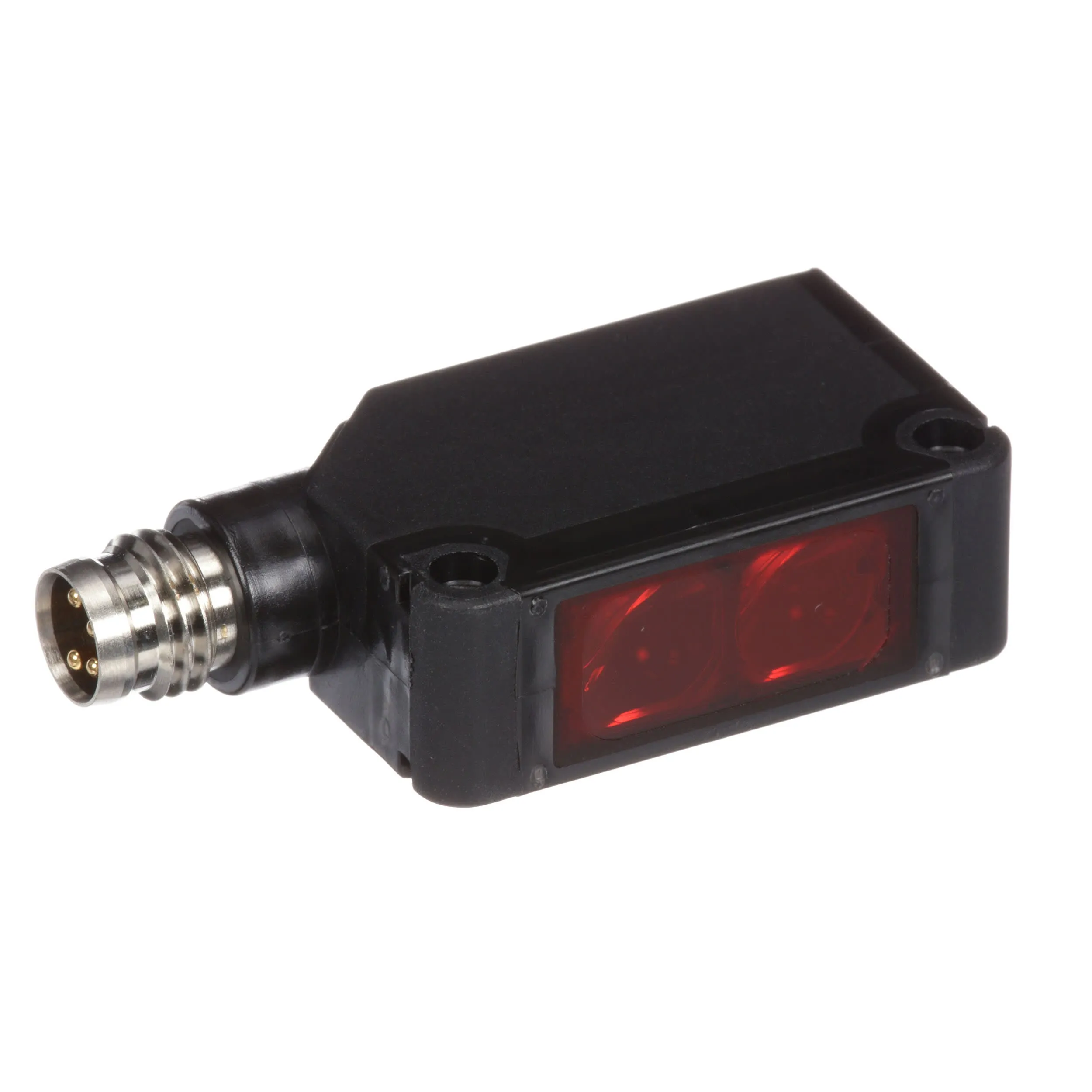

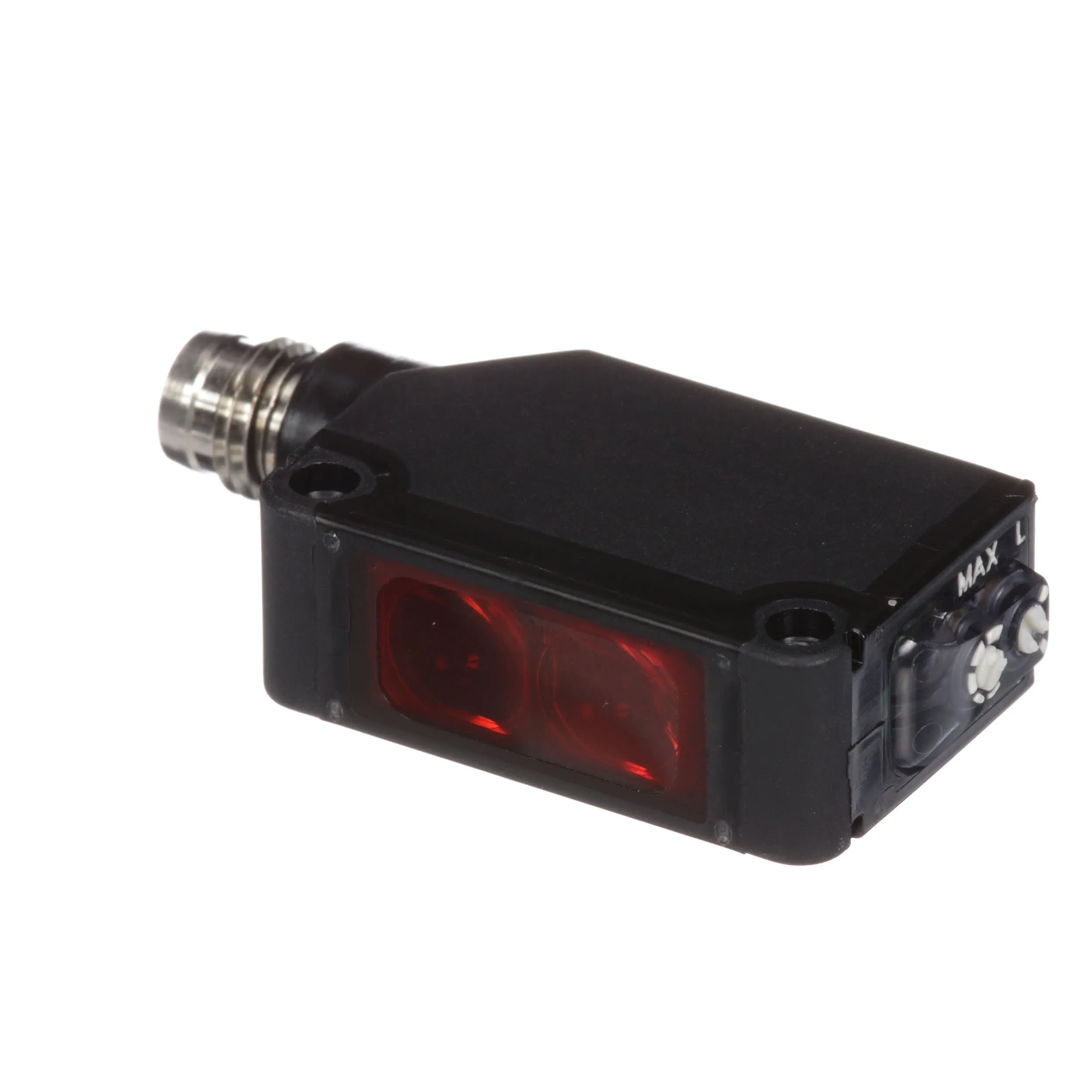

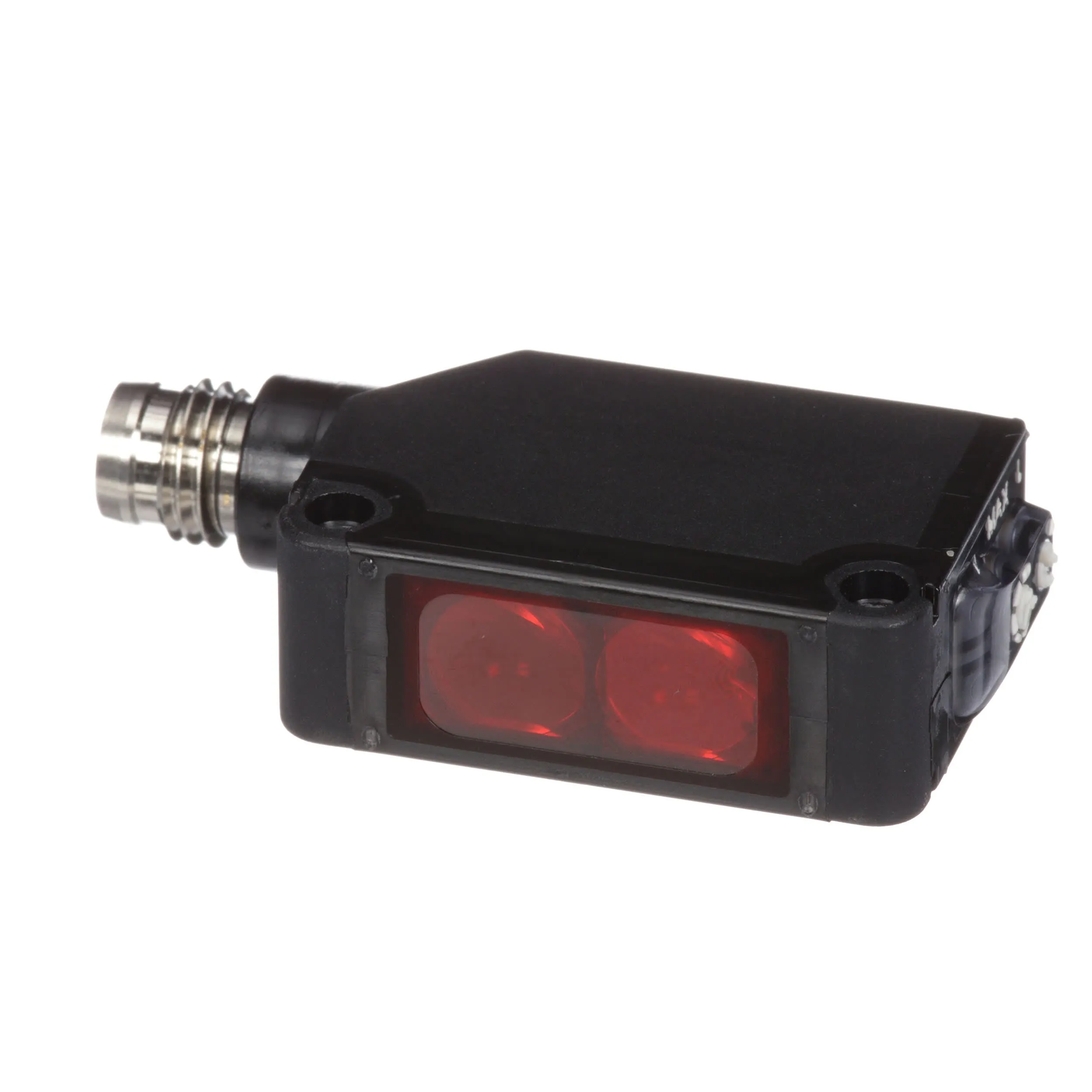

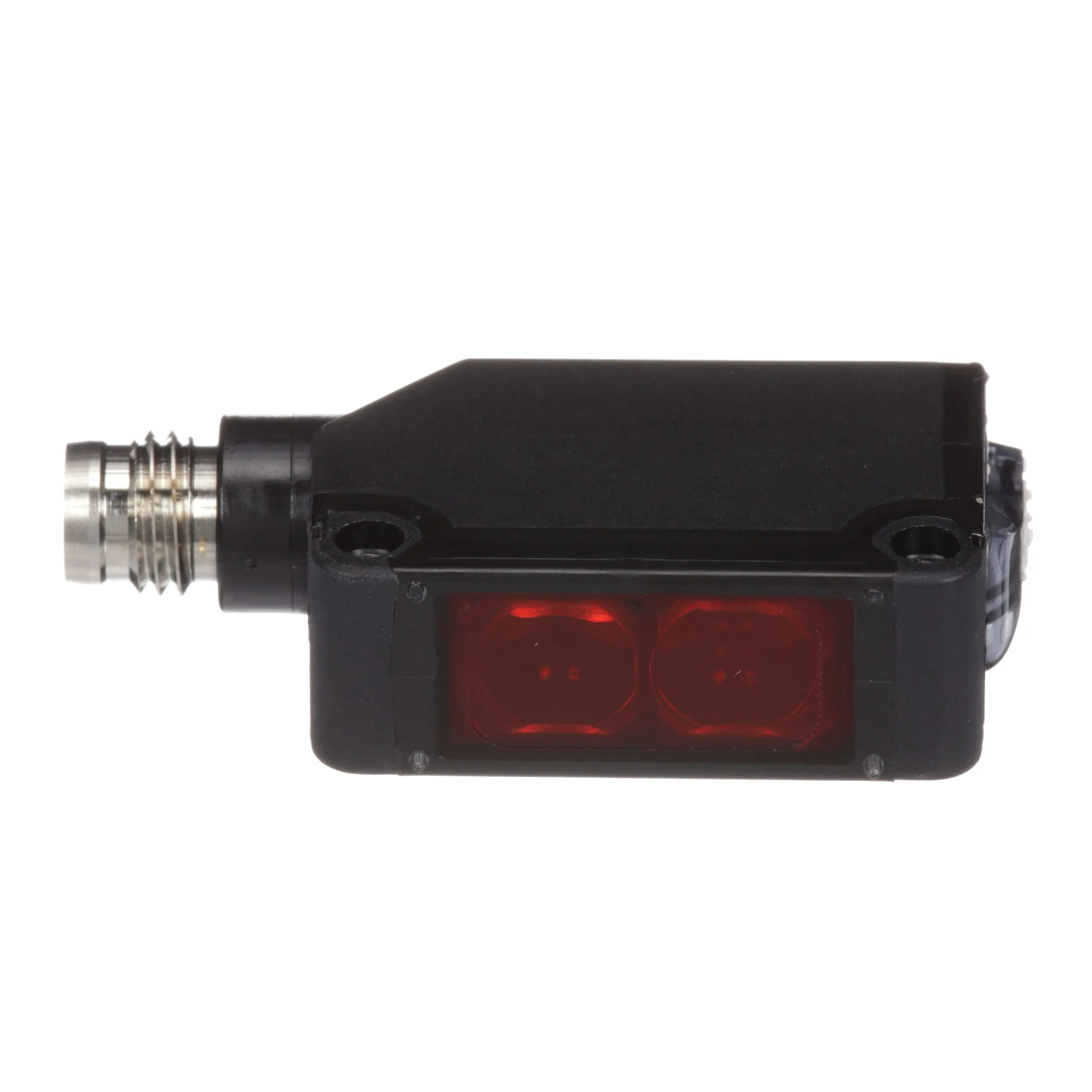

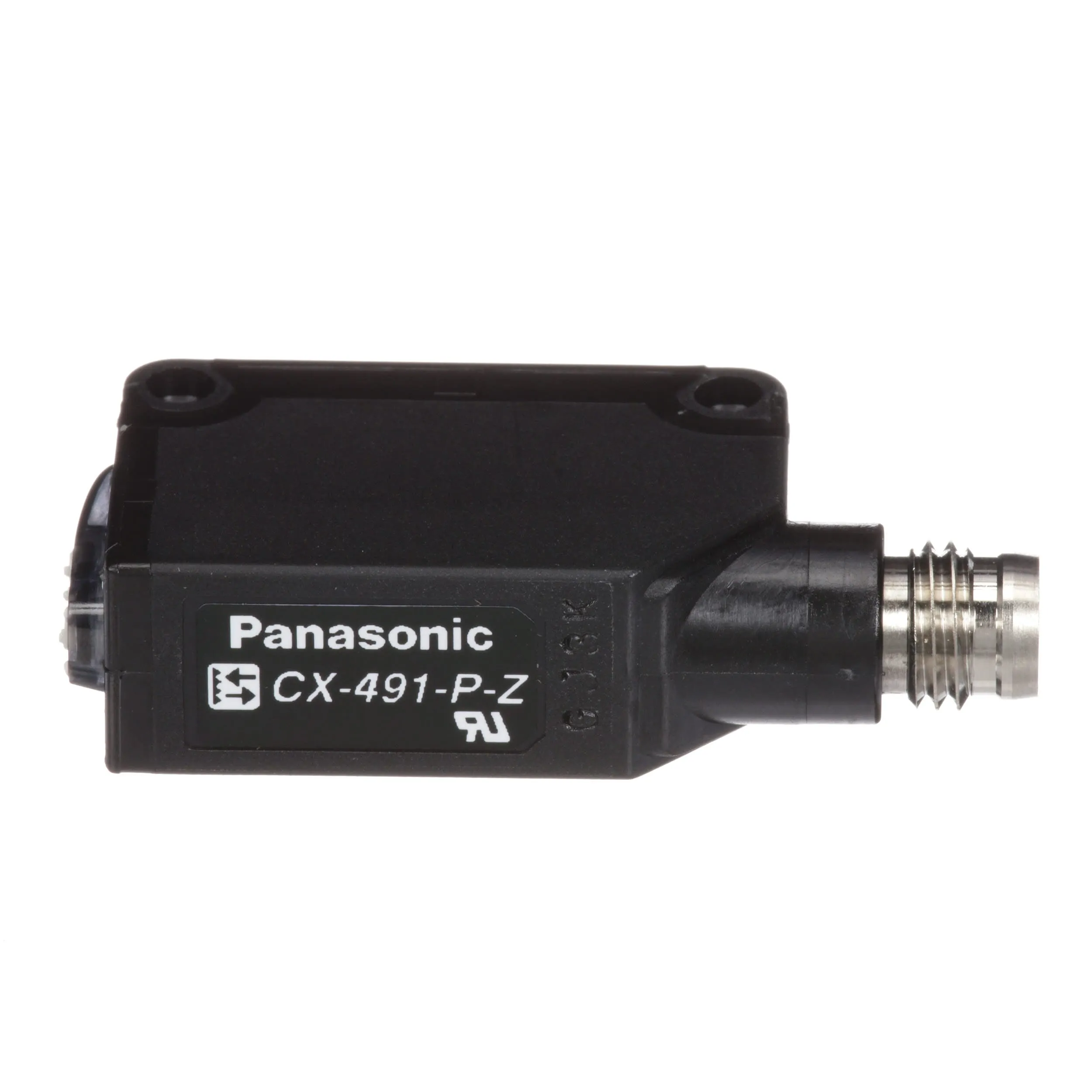

The CX-400 series of photoelectric sensors is a wide-ranging lineup of 116 different models. Whatever your application entails, Panasonic has covered it with this series. Built to IP-67 standards, the CX-400 series is designed for the most demanding environments.
There are also models that are specifically design for resistance to oil, coolant, or ethanol. Couple this with high electrical noise resistance and a built in interference prevention function, and you have one of the most robust sensors on the market.
Features:
