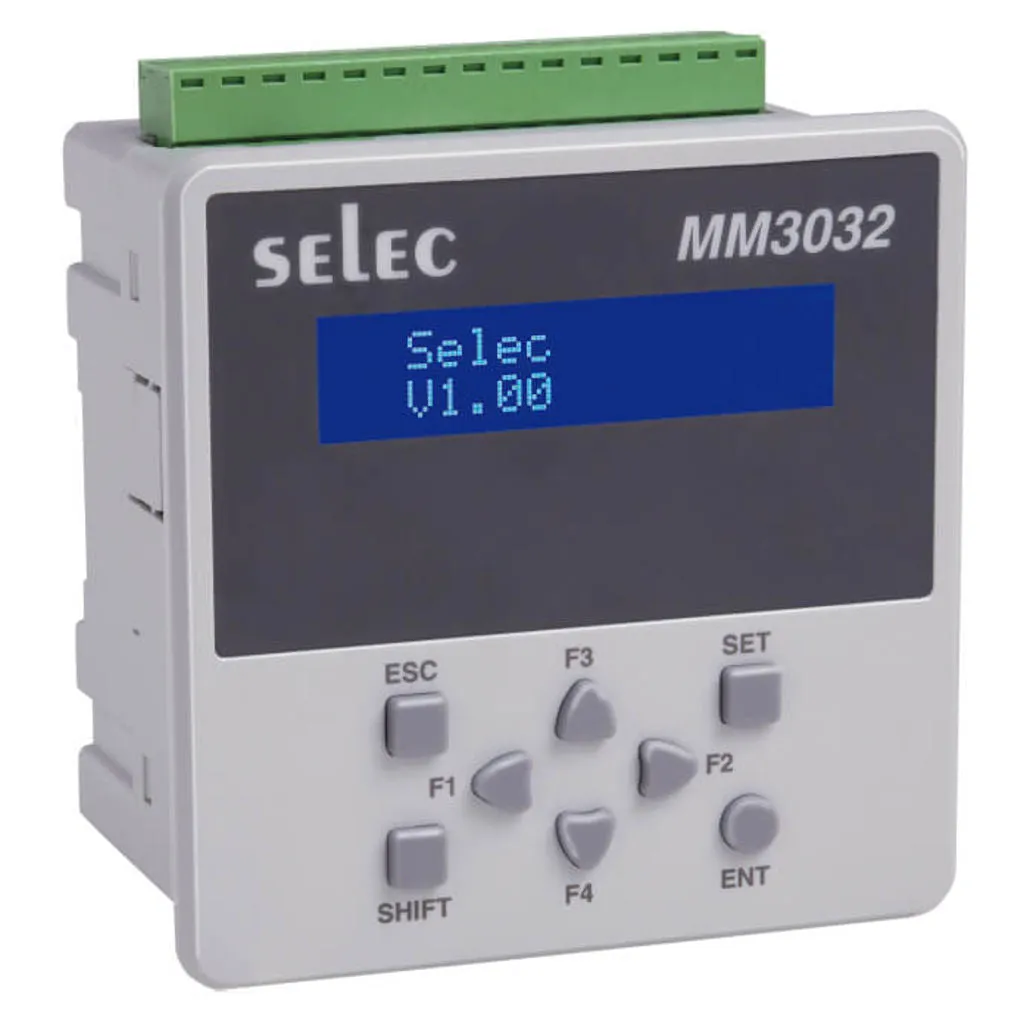

Product Description
-
96x96 size, Rail/Panel Mount PLC, LCD Text Display with 16x2 Characters with Yellow Green Display with 8 Keys
-
8 Digital Inputs and 6 Relay Outputs
-
1/2 Analog Inputs and Optional Analog Output (0-10V)
-
Fast Input Upto 5KHz
-
RJ25 6 pin MODBUS RS485 Serial Slave Port for Downloading and Communication
Product Specification
| Brand | Selec |
| Product Type | PLC |
| Product Model | MM3032-2-0-0-230V V2 |
| Description | PLC – 8DI, 6RO, 2AI (V/I), 1AO (0-10V DC) & 230VAC |
| Display Types | 2 x 16 Characters LCD (With Backlight) 8 Keys (6 User Configurable) |
| Digital Inputs | 8 (PNP Type) Including 1 Fast Inputs Channels |
| Analog Input | 2 Channels ( 0-20mA) |
| Digital Outputs | 6 Relay Outputs |
| Output Rating | 5A @230VAC / 24VDC |
| Analog Outputs | 1 Channel (0-10V) |
| RTC With Time Switch Function | NO |
| Code Memory | 240KB |
| Communication Interface | RS485 Based MODBUS RTU Protocol |
| Expansion | NO |
| Supply Voltage | 100-270V AC without retention 180-270V AC with retention |
| Mounting Type | Panel/DIN Rail |
| FI / Maximum Counting Frequency | FC0 (I0 & I1) - 5KHz, Normal digital input: 30Hz |
| Size | 96 x 96mm |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (CM) - L x B x H | 9.6 x 9.6 x 6.2 |
| Unit Of Measurement | 1 Piece |
| Weight | 0.5 kg |
| Generic Type | Programmable Logic Controllers |
| Manufacturer Details | Selec Controls Pvt. Ltd. EL-27/1, Electronic Zone, TTC Industrial Area, MIDC, Mahape Navi Mumbai - 400 710, Maharashtra. Phone : 91-22-41418468 Email: [email protected] |
| Packer Details | Selec Controls Pvt. Ltd. EL-27/1, Electronic Zone, TTC Industrial Area, MIDC, Mahape Navi Mumbai - 400 710, Maharashtra. Phone : 91-22-41418468 Email: [email protected] |
| Country Of Origin | India |
