Product Description
-

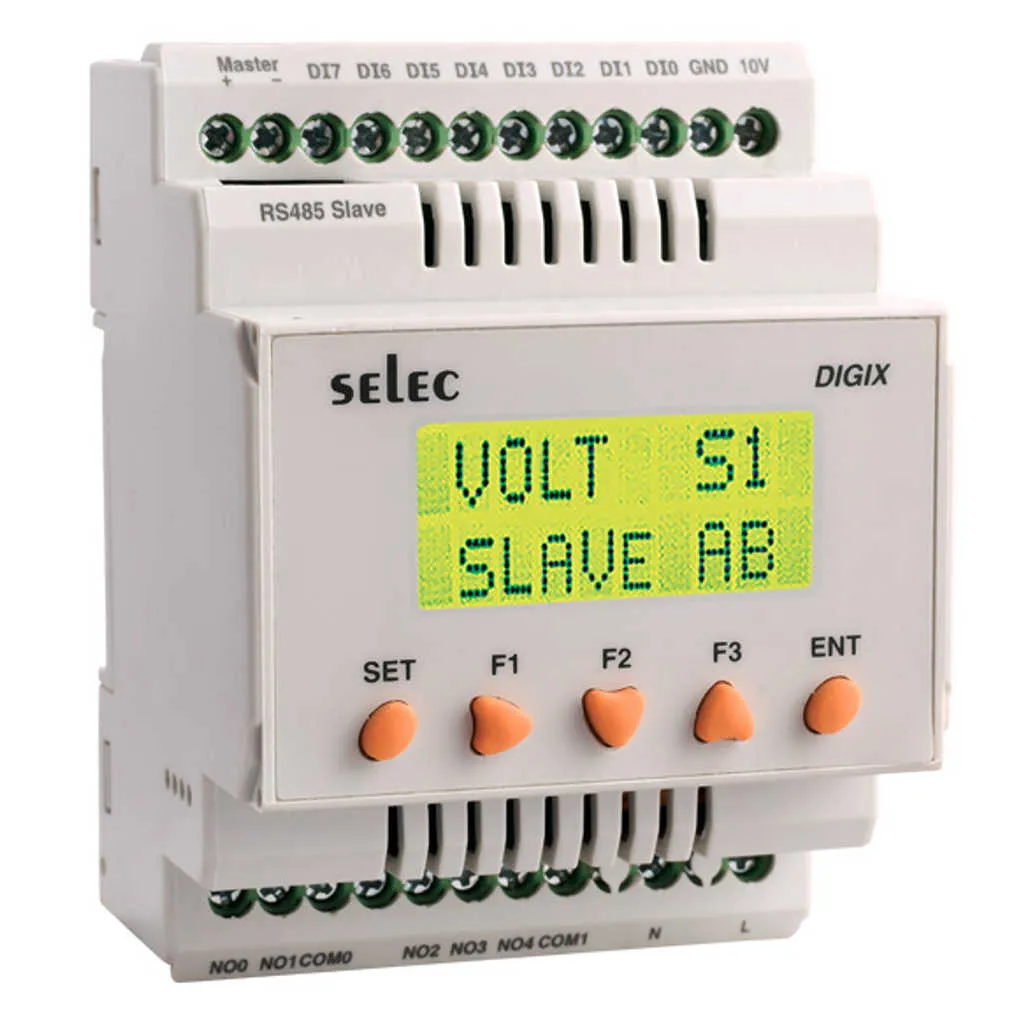

Rail Mount PLC with 8x2 Characters LCD Text Display with Yellow Green Backlight and with 5 Keys
-
8 Digital Inputs and 5 Relay Outputs
-
1 Channel Fast Input upto 5 kHz
-
Power Supply :90 to 270VAC / 18 to 30VDC
-
RJ25 MODBUS RS485 Serial Slave Port for Downloading and Communication
Product Specification
| Brand | Selec |
| Product Type | PLC |
| Product Model | DIGIX-1-0-0-24VDC |
| Description | PLC – 8DI, 5RO & 24VDC |
| Display Type | 2 x 8 Characters LCD (with Backlight) 5 Keys (4 User Configurable) |
| Digital Inputs | 8 (PNP Type) Including 1 Fast Input Channel |
| Analog Inputs | NA |
| Digital Outputs | 5 Relay Outputs |
| Output Rating | 5A @230VAC / 24VDC |
| Analog Outputs | NA |
| RTC With Time Switch Function | N/A |
| Code Memory | 112KB |
| Communication Interface | RS485 Based MODBUS RTU Protocol |
| Expansion | N/A |
| Supply Voltage | 100 to 270 V AC/DC , 18 to 30V DC |
| Mounting Type | DIN Rail |
| FI / Maximum Counting Frequency | FC0 (I0 & I1) - 5KHz, Normal digital input: 30Hz |
| Size | 70 x 90mm |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (CM) - L x B x H | 9.6 x 9.6 x 6.2 |
| Unit Of Measurement | 1 Piece |
| Weight | 0.5 kg |
| Generic Type | Programmable Logic Controllers |
| Manufacturer Details | Selec Controls Pvt. Ltd. EL-27/1, Electronic Zone, TTC Industrial Area, MIDC, Mahape Navi Mumbai - 400 710, Maharashtra. Phone : 91-22-41418468 Email: [email protected] |
| Packer Details | Selec Controls Pvt. Ltd. EL-27/1, Electronic Zone, TTC Industrial Area, MIDC, Mahape Navi Mumbai - 400 710, Maharashtra. Phone : 91-22-41418468 Email: [email protected] |
| Country Of Origin | India |
