Product Description
-

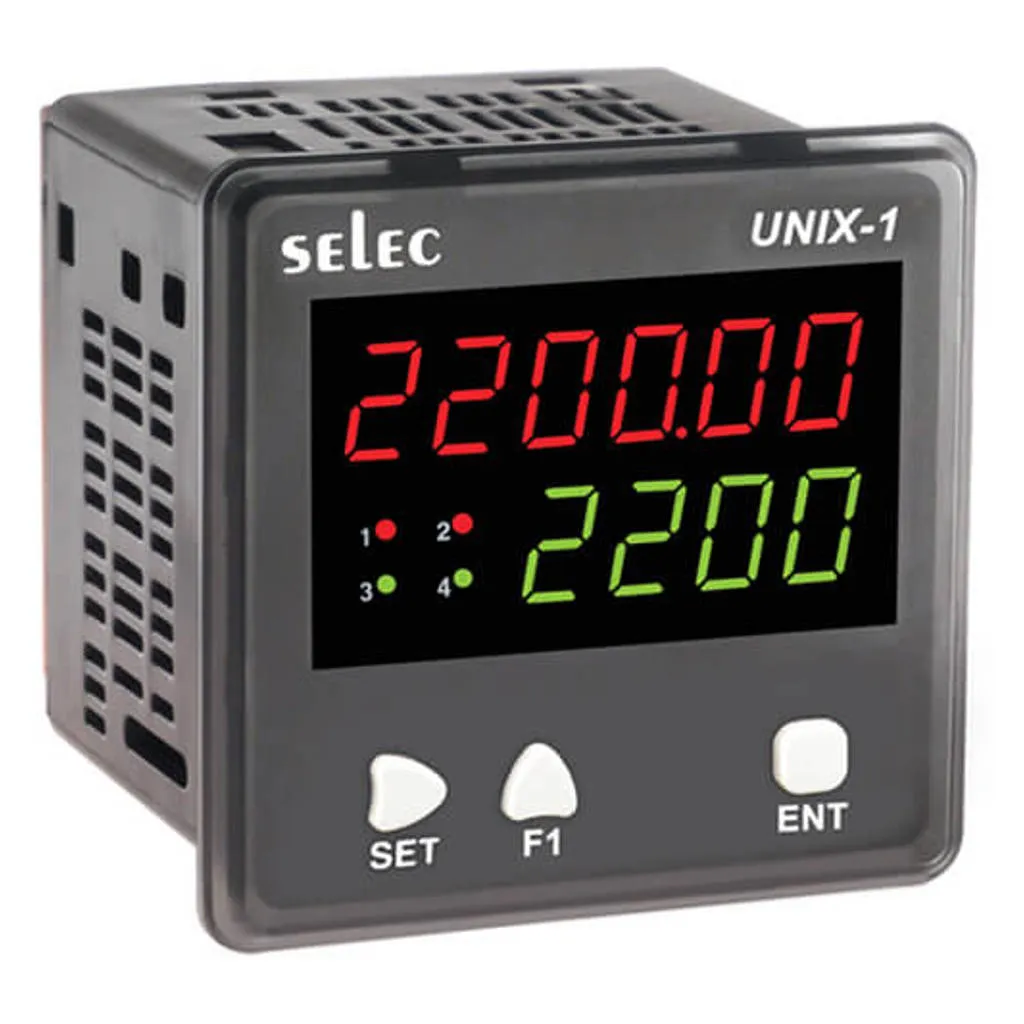

72x72 size plc with 7 segment 6 digit Red and 4 Digit Green Display and 3 Keys
-
Product has 3 1 Digital Inputs, 2 relay Output and 2 transitor Output
-
1 channel Fast Input upto 5kHz
-
One digital Input out of 4 can be seleced and used as 0-10V analog Input.
-
One each analog Input channel of TC(J,K,T,R,S,C,E,B,N,L,U,W,PLATINEL II) / RTD type, voltage (0-10VDC), current (0-20mA)
-
Power supply : 90 to 270 VAC
-
2 wire MODBUS RS485 Serial Slave Port for Downloading and Communication purpose
Product Specification
| Brand | Selec |
| Product Type | PLC |
| Product Model | UNIX-1-230V |
| Description | PLC-3DI, 2RO, 2TO, 3AI (1TC/RTD, 1I, 1V/1DI) & 230VAC |
| Display Type | 6 Red 4 Green Digits LED Display , 2 Red 2 Green LED's |
| Digital Inputs | 3 1 (PNP Type) Including 1 Fast Input Channel |
| Analog Inputs | 3 Channels (1 TC / RTD, 1 (0-20)mA, 1 (0-10)VDC ) |
| Digital Outputs | 2 Transistor Outputs, 2 Relay Outputs |
| Output Rating | 5A @230VAC / 24VDC(Relay), 100mA @24V DC (Transistor) |
| Analog Outputs | NA |
| RTC With Time Switch Function | NO |
| Code Memory | 240KB |
| Communication Interface | RS485 Based MODBUS RTU Protocol |
| Expansion | NO |
| Supply Voltage | 100 to 270 VAC / 18 to 30 VDC |
| Mounting Type | Panel Mount |
| FI / Maximum Counting Frequency | FC0 (I0 & I1) - 5KHz, Normal digital input: 30Hz |
| Size | 72 x 72 mm |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (CM) - L x B x H | 9.6 x 9.6 x 6.2 |
| Unit Of Measurement | 1 Piece |
| Weight | 0.5 kg |
| Generic Type | Programmable Logic Controllers |
| Manufacturer Details | Selec Controls Pvt. Ltd. EL-27/1, Electronic Zone, TTC Industrial Area, MIDC, Mahape Navi Mumbai - 400 710, Maharashtra. Phone : 91-22-41418468 Email: [email protected] |
| Packer Details | Selec Controls Pvt. Ltd. EL-27/1, Electronic Zone, TTC Industrial Area, MIDC, Mahape Navi Mumbai - 400 710, Maharashtra. Phone : 91-22-41418468 Email: [email protected] |
| Country Of Origin | India |
