Product Description
-

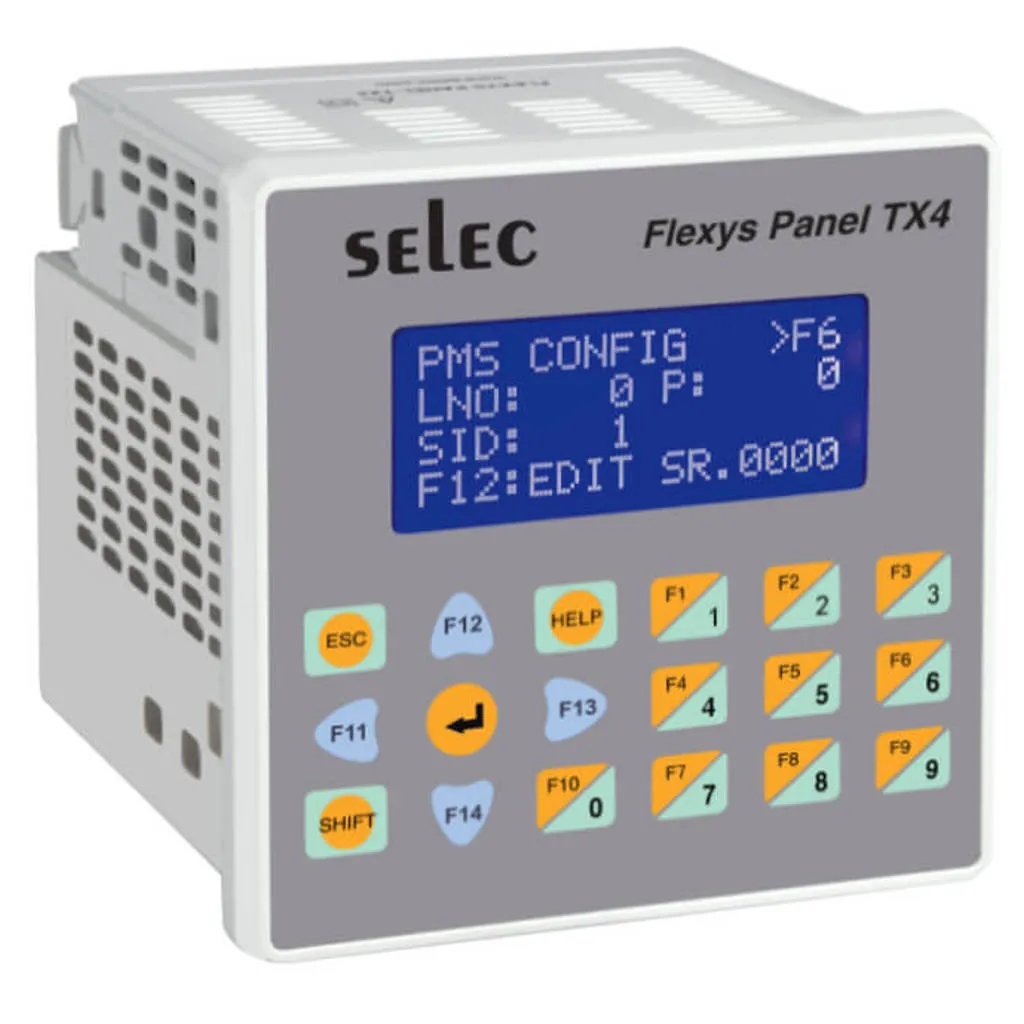

96x96 Panel Mount PLC with 4 Slots for IO Cards
-
16x4 LCD Text Display
-
4 DI on Power Supply card
-
DI, DO, AI, AO as per card selection
-
2 Channel Fast Input Upto 5 Khz
-
Power Supply :- 90 to 270 VAC/ 18 to 30 VDC
-
RTC, MODBUS and Proprietory Expansion
-
RJ25 MODBUS RS485 Slave and Master Communication port for Downloading and Communication Purpose
Product Specification
| Brand | Selec |
| Product Type | PLC |
| Product Model | FL-TX4-DI04-PS-24V-CE-RoHS |
| Description | Flexys Panel TX4 – Logic card – RTC, MODBUS |
| Display Type | 4 x 16 Characters LCD (With Backlight) 18 Keys (14 User Configurable) |
| Digital Inputs | 4 Digital Inputs On Power Supply Cards As Per Flexys Card Selection |
| Analog Inputs | As Per Flexys Card Selection |
| Digital Outputs | As Per Flexys Card Selection |
| Analog Outputs | As Per Flexys Card Selection |
| No Of Slots | 4 |
| RTC With Time Switch Function | Available |
| Code Memory | 351KB |
| Communication Interface | RS485 Based MODBUS RTU Protocol, Proprietary Protocol |
| Expansion | Yes |
| Supply Voltage | 100 to 270 VAC / 18 to 30 VDC |
| Mounting Type | Panel Mount |
| FI / Maximum Counting Frequency | FC0 (I0 & I1) & FC1 (I2 & I3) - 5KHz (on power supply card only), Normal digital inputs - 30Hz |
| Size | 99 x 99 mm |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (CM) - L x B x H | 9.6 x 9.6 x 6.2 |
| Unit Of Measurement | 1 Piece |
| Weight | 0.5 kg |
| Generic Type | Programmable Logic Controllers |
| Manufacturer Details | Selec Controls Pvt. Ltd. EL-27/1, Electronic Zone, TTC Industrial Area, MIDC, Mahape Navi Mumbai - 400 710, Maharashtra. Phone : 91-22-41418468 Email: [email protected] |
| Packer Details | Selec Controls Pvt. Ltd. EL-27/1, Electronic Zone, TTC Industrial Area, MIDC, Mahape Navi Mumbai - 400 710, Maharashtra. Phone : 91-22-41418468 Email: [email protected] |
| Country Of Origin | India |
