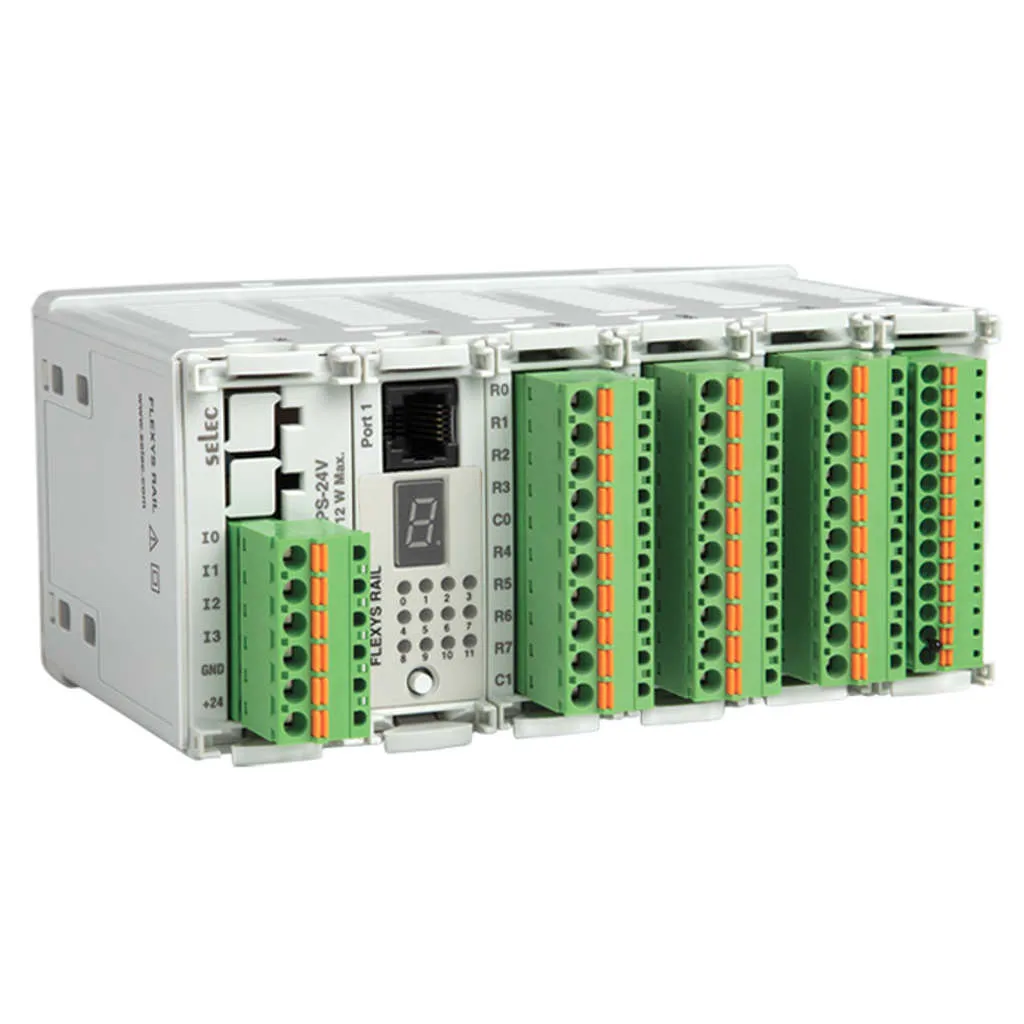

Name: Selec Modular Blind PLC FL-RL-PS-230V
SKU: 1119337

Product Details ＋

Product Description

Rail Mount PLC with 4 Slots for IO Card
4 DI on Power Supply card ( Only for 24VDC variant)
DI, DO, AI, AO as per card selection
2 Channel Fast Input Upto 5 Khz
Power Supply :- 90 to 270 VAC/ 18 to 30 VDC
RTC, MODBUS and Proprietory Expansion
RJ25 MODBUS RS485 Slave and Master Communication port for Downloading and Communication Purpose

Product Specification

Brand	Selec
Product Type	PLC
Product Model	FL-RL-PS-230V
Description	Flexys Rail Power Supply Card 24VDC, 4 Digital Inputs
Display Type	12 LEDs To Indicate Card And Communication Status For Selectable Slot, One 7 Segment To Display Slot No
Digital Inputs	4 Digtal Inputs On Power Supply Card As Per Flexys Card Selection
Analog Inputs	As Per Flexys Card Selection
Digital Outputs	As Per Flexys Card Selection
Analog Outputs	As Per Flexys Card Selection
No Of Slots	4
RTC With Time Switch Function	Available
Code Memory	351KB
Communication Interface	RS485 Based MODBUS RTU Protocol, Proprietary Protocol
Expansion	Yes
Supply Voltage	100 to 270 VAC / 18 to 30 VDC
Mounting Type	Din Rail
FI / Maximum Counting Frequency	FC0 (I0 & I1) & FC1 (I2 & I3) - 5KHz (on power supply card only), Normal digital inputs - 30Hz
Size	140 x 93.6 mm
Warranty	As Per Manufacturer Terms and Condition

Other Details

Dimension (CM) - L x B x H	9.6 x 9.6 x 6.2
Unit Of Measurement	1 Piece
Weight	0.5 kg
Generic Type	Programmable Logic Controllers
Manufacturer Details	Selec Controls Pvt. Ltd. EL-27/1, Electronic Zone, TTC Industrial Area, MIDC, Mahape Navi Mumbai - 400 710, Maharashtra. Phone : 91-22-41418468 Email: [email protected]
Packer Details	Selec Controls Pvt. Ltd. EL-27/1, Electronic Zone, TTC Industrial Area, MIDC, Mahape Navi Mumbai - 400 710, Maharashtra. Phone : 91-22-41418468 Email: [email protected]
Country Of Origin	India
