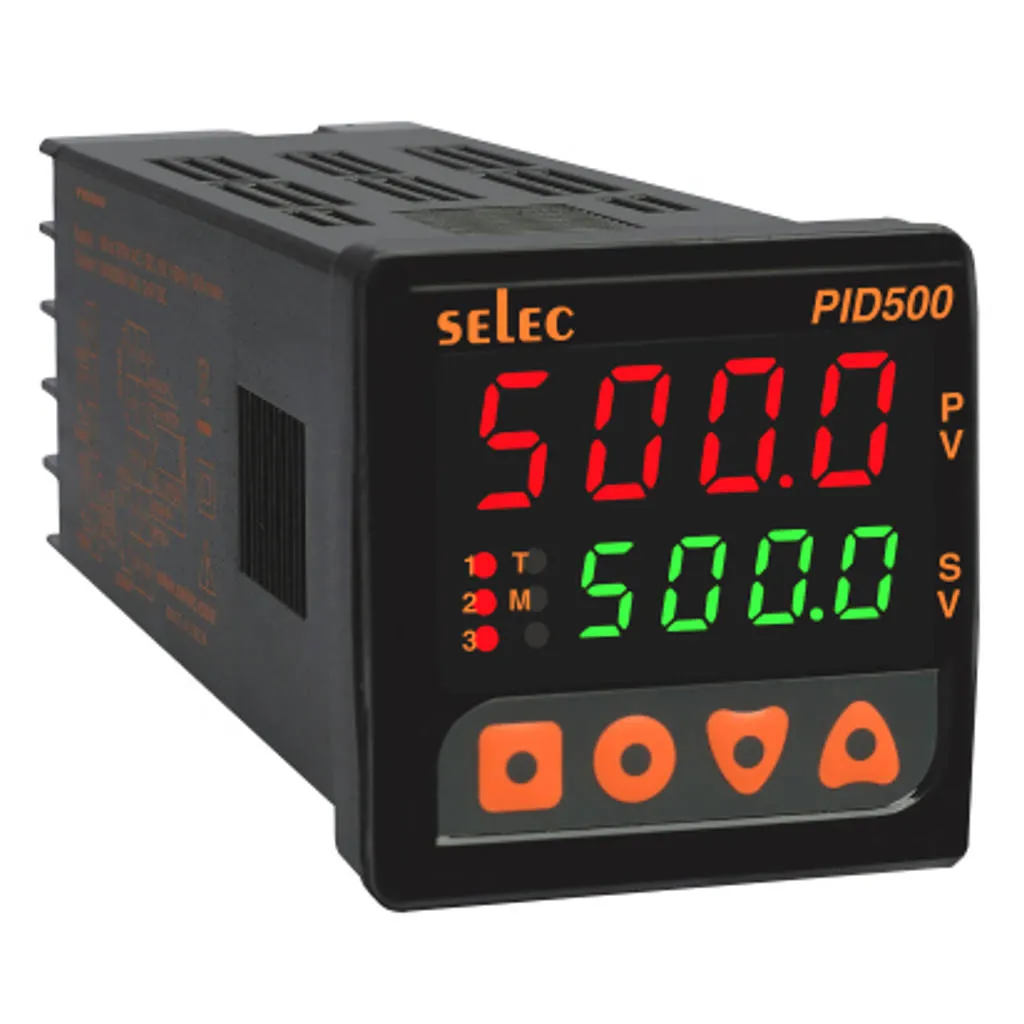

Brand

Selec

Product Type

PID Controller

Product Model

PID500-0-0-04

Display Type

7 Segment LED Dual Display

Display Configuration

4 4 digits

Type Of Inputs

Thermocouple: J, K, T, R, S, C,E, B, N, L, U, W, Platinel II. RTD: PT100, Signal Inputs: (DC) -5 to 56mV, 0 to 10V, 0 to 20mA (Selectable)

Resolution

TC / RTD : 1/ 0.1 Analog input : 1 /0.1/ 0.01/ 0.001

Accuracy

For TC (J, K, T) inputs: 0.25% of F.S. ±1 For R & S inputs: 0.5% of F.S. ±2 (20min of warm up time) For RTD inputs: 0.1% of F.S ±1

Control Output

Relay or SSR or Current : 4 to 20mA DC (max load 500E) or Voltage :0 to 10V DC(min load 10K)

Auxiliary Output

Relay

Control Mode

Autotune PID / ON-OFF

Feature

Single step ramp soak

Communication

RS485 MODBUS communication (optional)

Supply Voltage

90V to 270V AC/DC

Mounting Type

Panel Mount

Certification

CE

Size

48 x 48mm

Warranty

As Per Manufacturer Terms and Condition

Dimension (CM) - L x B x H

9.6 x 9.6 x 6.2

Unit Of Measurement

1 Piece

Weight

0.5 kg

Generic Type

Temperature Controllers

Manufacturer Details

Selec Controls Pvt. Ltd. EL-27/1, Electronic Zone, TTC Industrial Area, MIDC, Mahape Navi Mumbai - 400 710, Maharashtra. Phone : 91-22-41418468 Email: [email protected]

Packer Details

Selec Controls Pvt. Ltd. EL-27/1, Electronic Zone, TTC Industrial Area, MIDC, Mahape Navi Mumbai - 400 710, Maharashtra. Phone : 91-22-41418468 Email: [email protected]

Country Of Origin

India
