Product Description
-

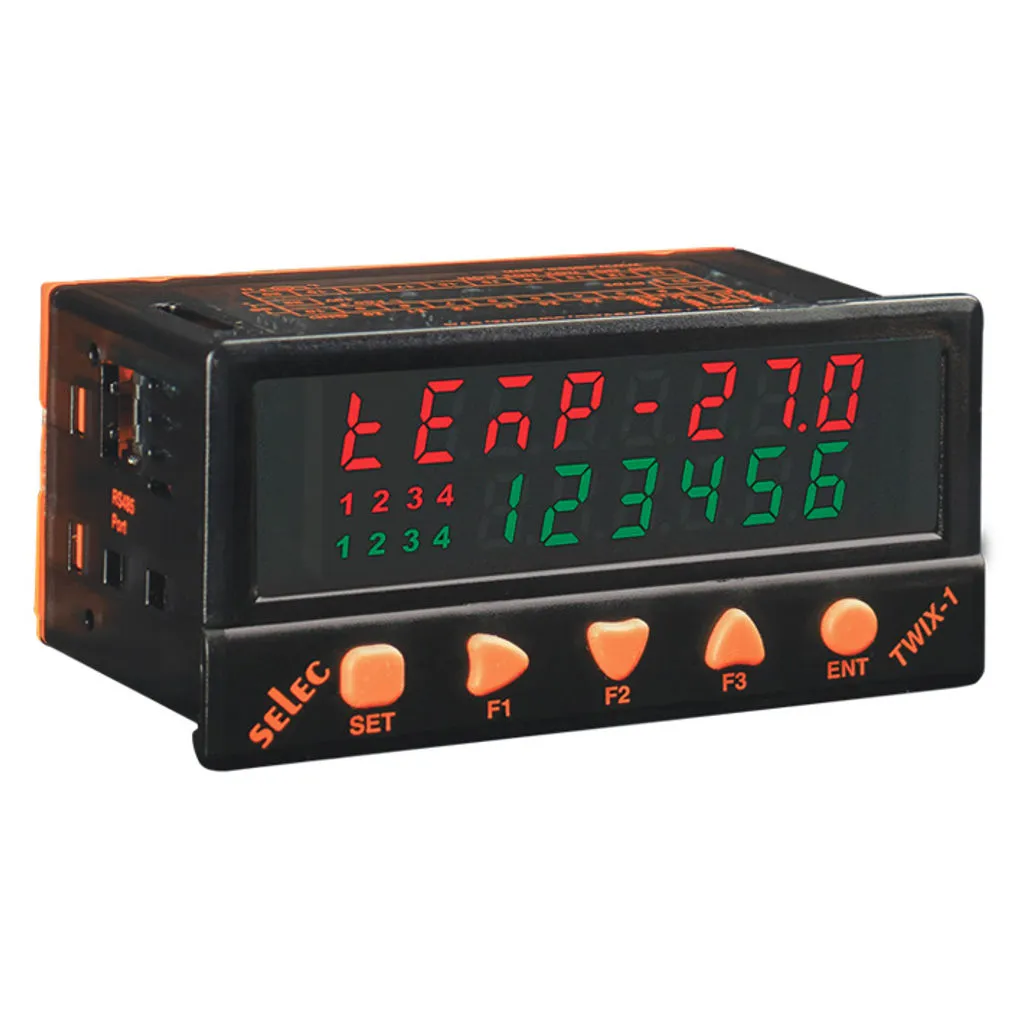

48 X 96 size and Panel Mount PLC, with 7 Segment 4 4 Digits Red, 6 Digits Green Display with 5 Keys
-
6 Digital Inputs, 4 Relay Outputs
-
1 Channel Fast Input upto 5kHz
-
1 Channel Analog Input of TC(J,K,T,R,S,C,E,B,N,L,U,W,PLATINEL II) / RTD that can be configured through programming
-
Supply voltage : 90 to 270 VAC / 18 to 30 VDC
-
RJ25 MODBUS RS485 Serial Slave Port for Downloading and Communication purpose
Product Specification
| Brand | Selec |
| Product Type | PLC |
| Product Model | TWIX-1-230V |
| Description | PLC – 6DI, 4RO, 1AI (TC/RTD) & 230VAC |
| Display Type | (4 4) Red 6 Green Digits LED Display , 4 Red 4 Green LED's |
| Digital Inputs | 6 (PNP Type) Including 1 Fast Input Channel |
| Analog Inputs | 1 Channel (TC / RTD) |
| Digital Outputs | 4 Relay Outputs |
| Output Rating | 5A @230VAC / 24VDC |
| Analog Outputs | NA |
| RTC With Time Switch Function | No |
| Code Memory | 112KB |
| Communication Interface | RS485 Based MODBUS RTU Protocol |
| Expansion | NO |
| Supply Voltage | 100 to 270 VAC / 18 to 30 VDC |
| Mounting Type | Panel Mount |
| FI / Maximum Counting Frequency | FC0 (I0 & I1) - 5KHz, Normal digital input: 30Hz |
| Size | 48 x 96mm |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (CM) - L x B x H | 9.6 x 9.6 x 6.2 |
| Unit Of Measurement | 1 Piece |
| Weight | 0.5 kg |
| Generic Type | Programmable Logic Controllers |
| Manufacturer Details | Selec Controls Pvt. Ltd. EL-27/1, Electronic Zone, TTC Industrial Area, MIDC, Mahape Navi Mumbai - 400 710, Maharashtra. Phone : 91-22-41418468 Email: [email protected] |
| Packer Details | Selec Controls Pvt. Ltd. EL-27/1, Electronic Zone, TTC Industrial Area, MIDC, Mahape Navi Mumbai - 400 710, Maharashtra. Phone : 91-22-41418468 Email: [email protected] |
| Country Of Origin | India |
