Product Description
-

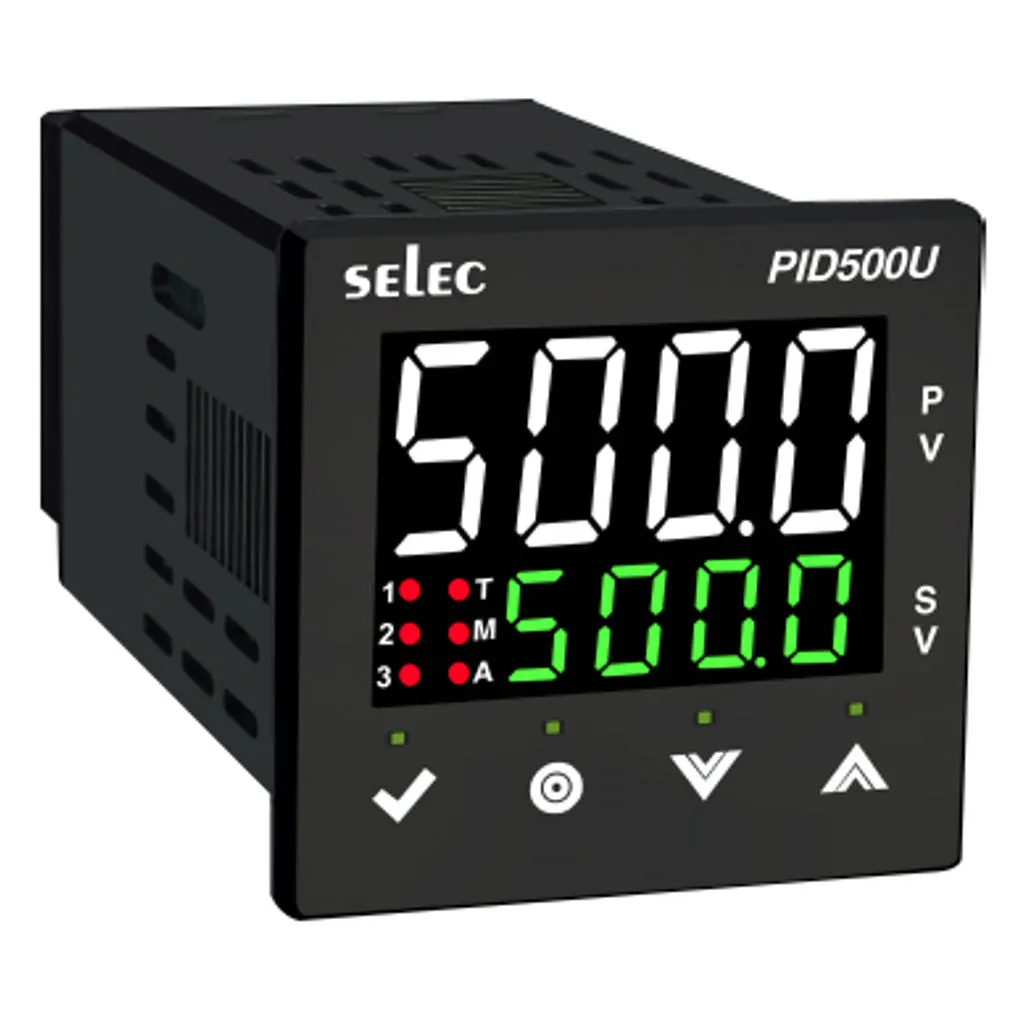

4 digit Dual bright display Advance PID temperature controller
-
Capacitive touch keypad
-
Universal Input TC: J, K, T, R, S, C,E, B, N, L, U, W, Platinel II, RTD: PT100 Signal input: (-5 to 56mV, 0 to 10V DC, 0 to 20 mA DC)
-
Universal Output (Relay, SSR or Analog output)
-
Adaptive-Auto tune PID/ ON-OFF control
-
IDM Applicable
-
Upto 128 step Ramp-Soak function profile control
-
Panel mount, Short depth
-
90 to 270V AC/DC supply voltage
-
RS485 communication available
-
CE, RoHS, IP65 frontal certified
Product Specification
| Brand | Selec |
| Product Type | Temperature Controller |
| Product Model | PID500-U-0-1 |
| Display Type | 7 Segment LED (White Green) Dual Display |
| Display Configuration | 4 4 digits |
| Type Of Inputs | Thermocouple: J, K, T, R, S, C,E, B, N, L, U, W, Platinel II. RTD: PT100, Signal Inputs: (DC) -5 to 56mV, 0 to 10V, 0 to 20mA (Selectable) |
| Resolution | TC / RTD : 1/ 0.1 Analog input : 1 /0.1/ 0.01/ 0.001 |
| Accuracy | TC (J, K, T) inputs: 0.25% of F.S. ±1 |
| Control Output | Relay or SSR or Current : 0/4 to 20mA DC or Voltage :0 to 5/10V DC |
| Auxiliary Output | Relay |
| Control Mode | Adaptive-Auto tune PID / ON-OFF control |
| Feature | 128 step ramp soak profile control |
| Communication | RS485 MODBUS communication (optional) |
| Supply Voltage | 90V to 270V AC/DC |
| Size | 48 x 48mm |
| Certification | CE, RoHS |
| Mounting Type | Panel Mount |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (CM) - L x B x H | 9.6 x 9.6 x 6.2 |
| Unit Of Measurement | 1 Piece |
| Weight | 0.5 kg |
| Generic Type | Temperature Controllers |
| Manufacturer Details | Selec Controls Pvt. Ltd. EL-27/1, Electronic Zone, TTC Industrial Area, MIDC, Mahape Navi Mumbai - 400 710, Maharashtra. Phone : 91-22-41418468 Email: [email protected] |
| Packer Details | Selec Controls Pvt. Ltd. EL-27/1, Electronic Zone, TTC Industrial Area, MIDC, Mahape Navi Mumbai - 400 710, Maharashtra. Phone : 91-22-41418468 Email: [email protected] |
| Country Of Origin | India |
