Product Description
-

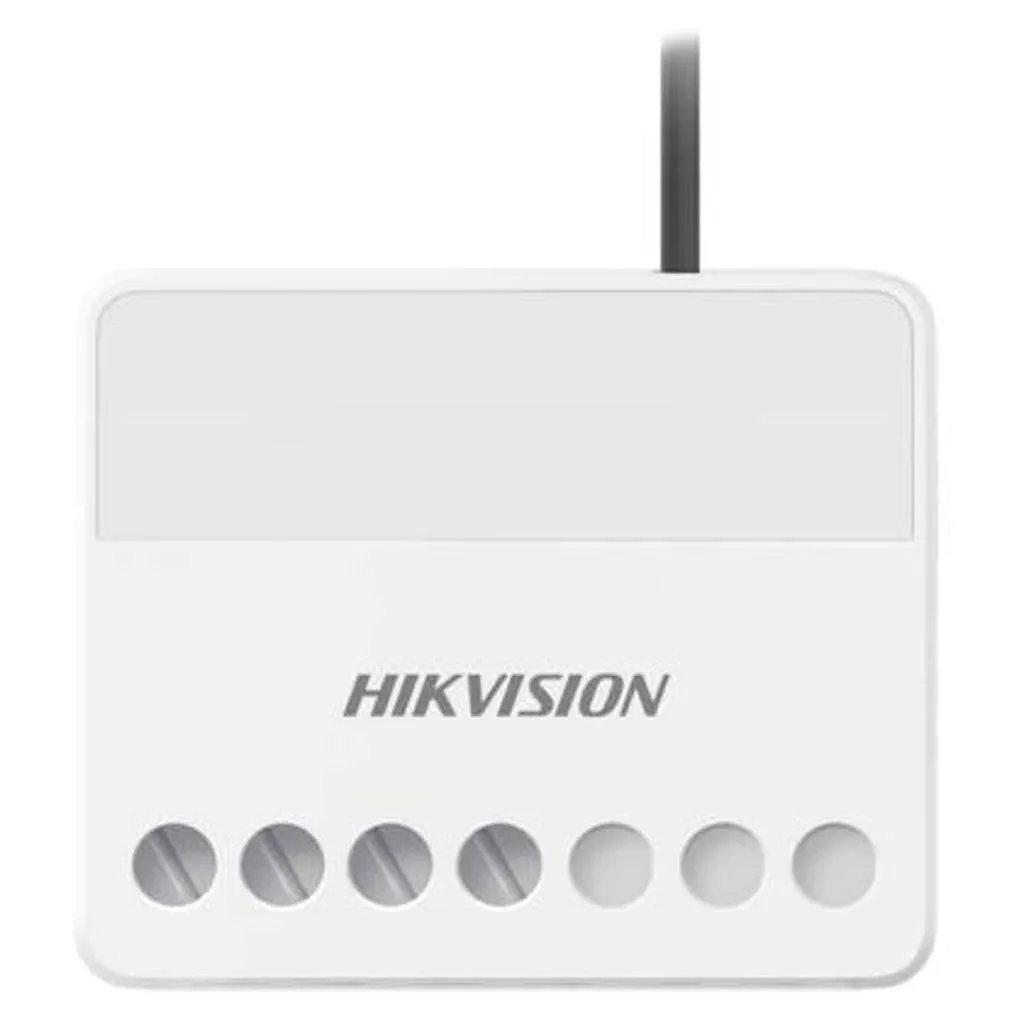

DS-PM1-O1H-WB Wall Switch is a device to control electrical power supply remotely
-
The device can directly connect to 100~240VAC source and open/close circuit manually via APP/Keypad/Keyfob or automatically by linking to different system events
-
Key Features
-
433MHz two-way wireless communication
-
AES-128 encryption
-
LED display, show status of device and replay on/off display
-
Small case design, which can be put into hiding places easily
-
Automation operating, one button turn on/off from APP/Keyfob/Keypad
-
Setting scenarios by different events
Product Specification
| Brand | Hikvision |
| Product Type | Wall Switch |
| Product Model | DS-PM1-O1H-WB |
| Wireless Transmission | |
| RF Frequency | 433 MHz |
| RF Method | Two-way communication |
| RF Modulation | 2GFSK |
| RF Distance | 800m |
| Wireless security | AES-128 |
| Software Features | |
| Scenario Setting | By Alarm, By Operation, By Fault, By Schedule, By Manual |
| Hardware Features | |
| Serial Port | 1, for debug |
| Electrical Characteristics | |
| Power Supply | AC 100v – 240v, 50/60 HZ |
| Operation Humidity | 10%~90% |
| Operation Temperature | -10℃~ 55℃ |
| Display | |
| LEDs Status | 3, Register/Signal (Green/Red), Power (Green), Relay Status (Blue) |
| Device Management | |
| Relay Output | 1, NO/NC (AC 100~240v, Max 13A） |
| General | |
| Installation Method | Wall Mounting or Inside 86 box |
| Shell Material | Plastic |
| Color | White |
| Dimension(WxHxD) | 38 x 25 x 18 mm |
| Weight | 31.5g |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (CM) - L x B x H | 3.8 x 2.5 x 1.8 |
| Unit of Measurement | 1 Piece |
| Weight | 1 kg |
| Generic Type | Transmitter |
| Manufacturer Details | Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : 91-22-4041 9900 |
| Packer Details | Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : 91-22-4041 9900 |
| Country of Origin | India |
