Product Details
＋

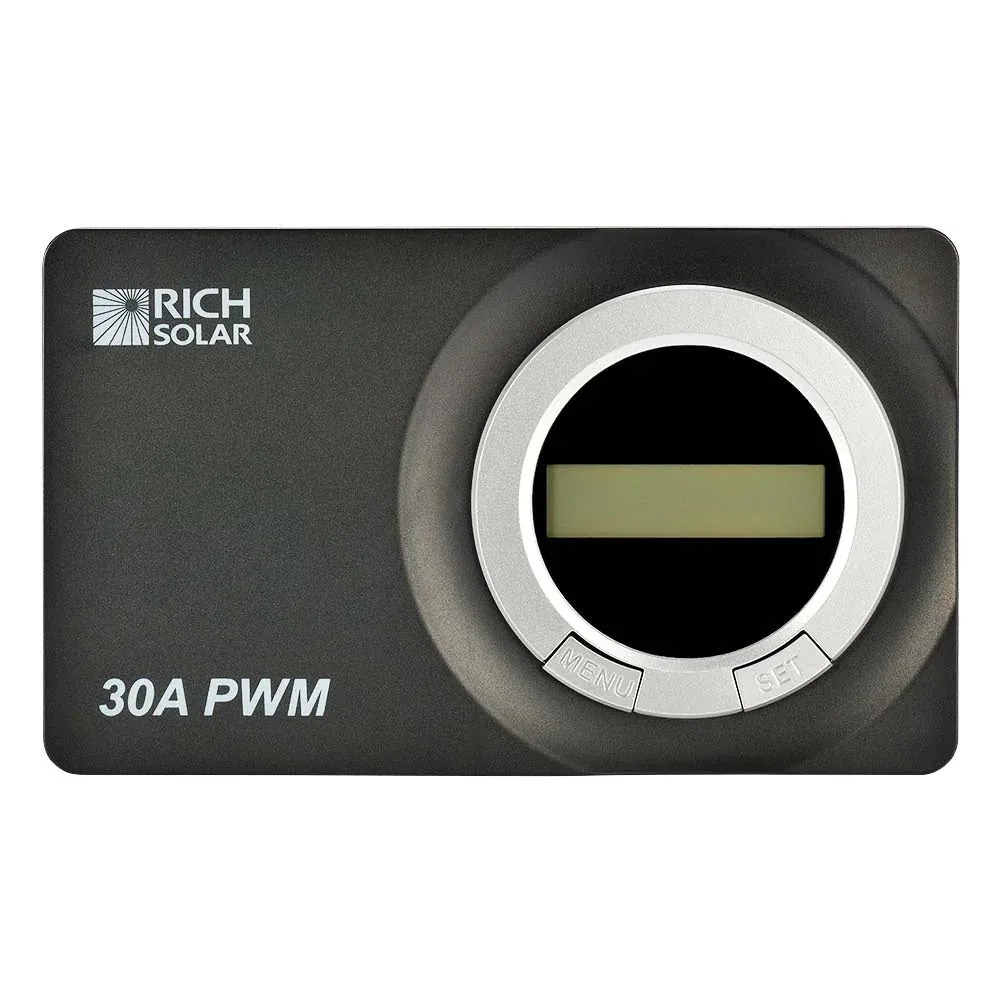

Power Your Off-Grid Dreams With The Rich Solar 30 Amp Solar Charge Controller Flush Mount
The Rich Solar 30 Amp Solar Charge Controller Flush Mount is your gateway to a self-sufficient, solar-powered life. This unassuming device is the silent hero behind your off-grid energy production, meticulously managing the flow of energy from your solar panels to your battery bank, ensuring your essential appliances and devices stay operational. It is specifically designed for solar systems with a maximum current capacity of 30 amps, making it suitable for small to medium-sized solar installations.
Rich Solar 30 Amp Solar Charge Controller Flush Mount Features

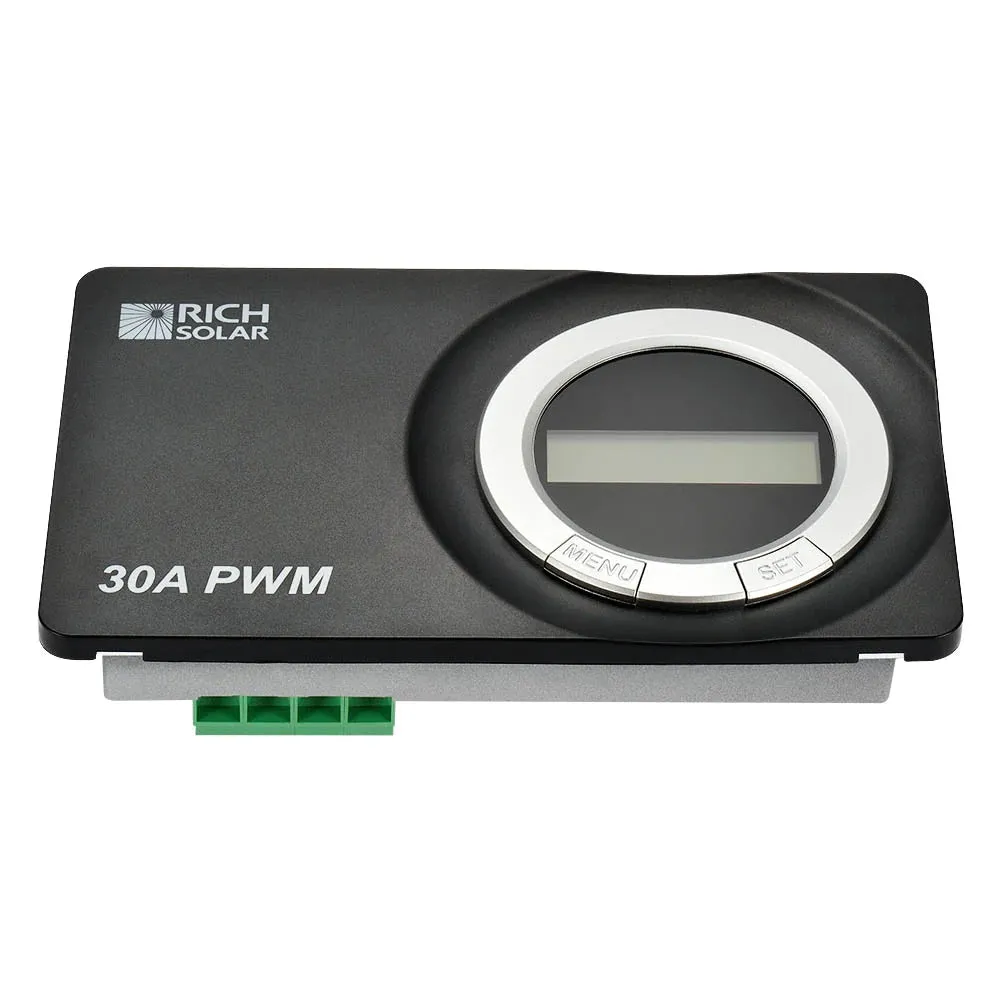

- Flush mounted and embedded installation design
- High quality and low failure rate components (ST/IR) to ensure the product lifetime
- 3-Stage intelligent PWM charging: Bulk, Boost/Equalize and Float
- Battery type: Sealed, Gel, Flooded
- Real-time energy statistics feature

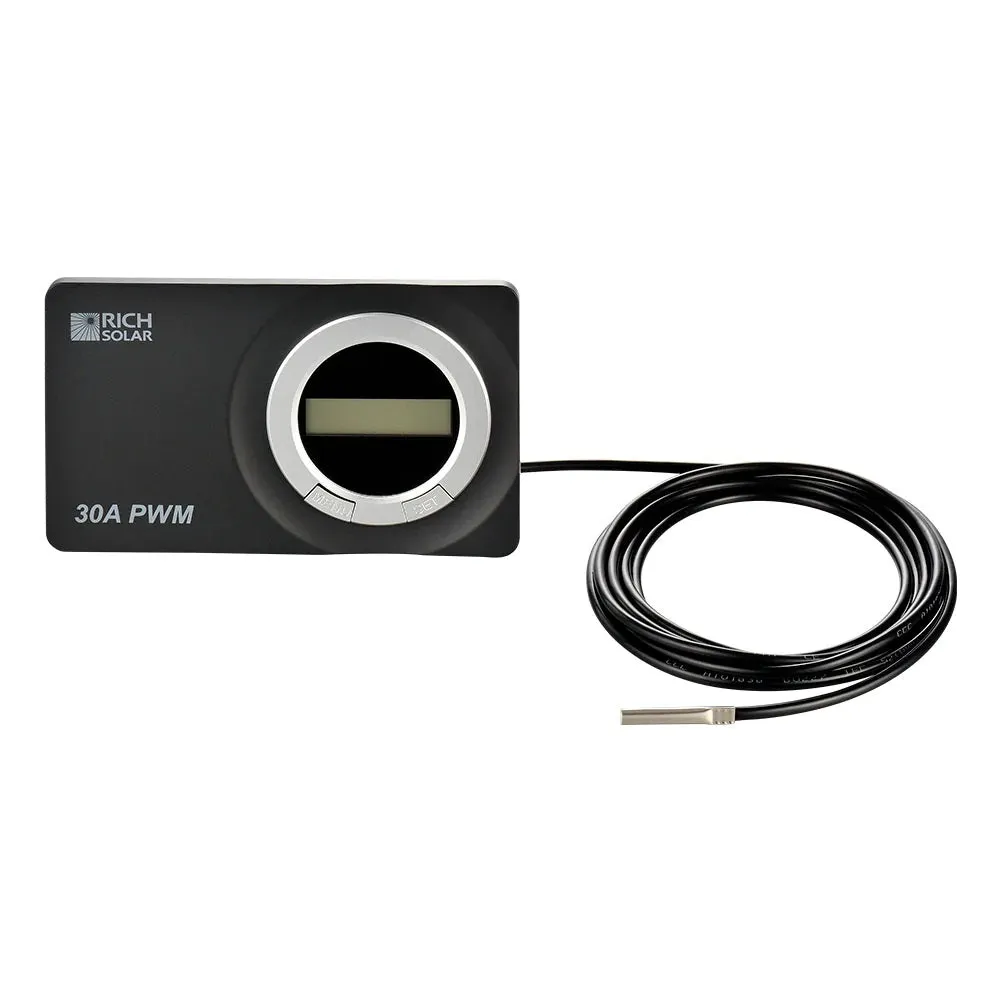

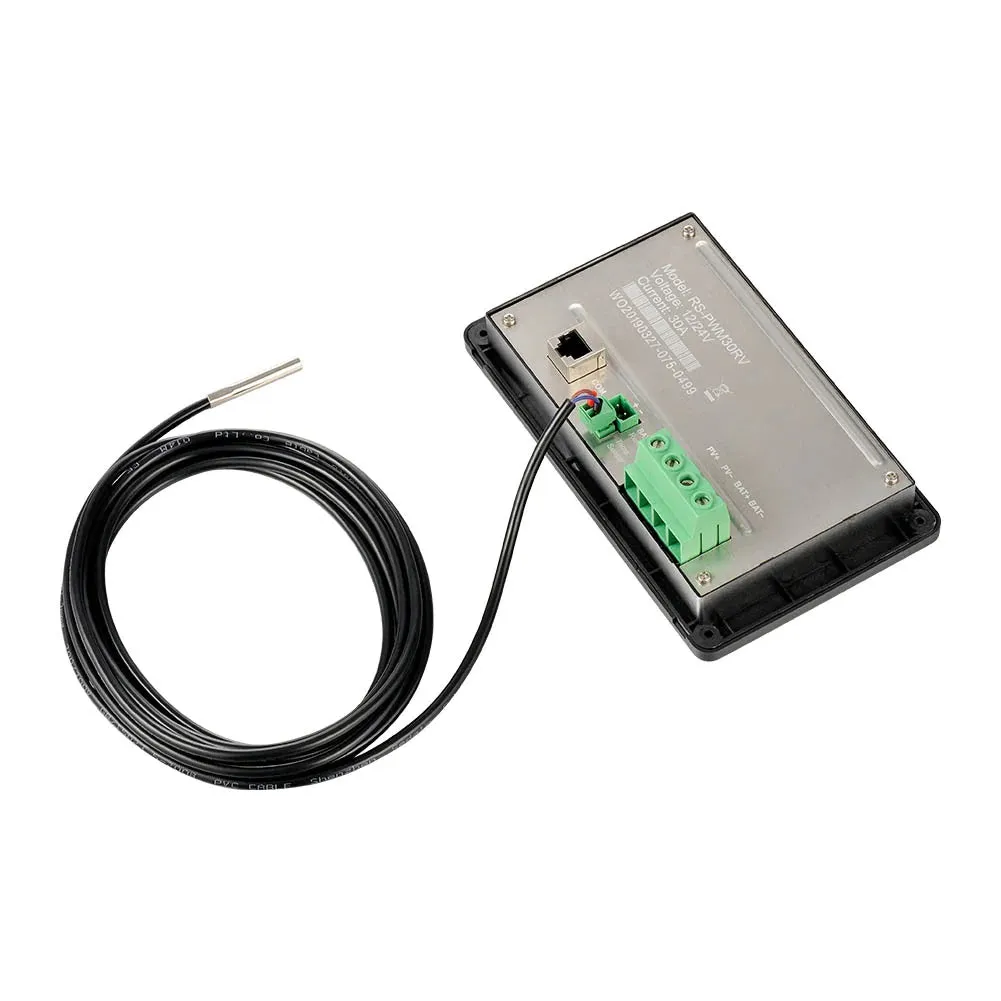

- Battery temperature compensation feature
- Digital LCD monitor for informative display of operational parameters and fault messages
- Voltage drop and temperature compensation sampling interface design

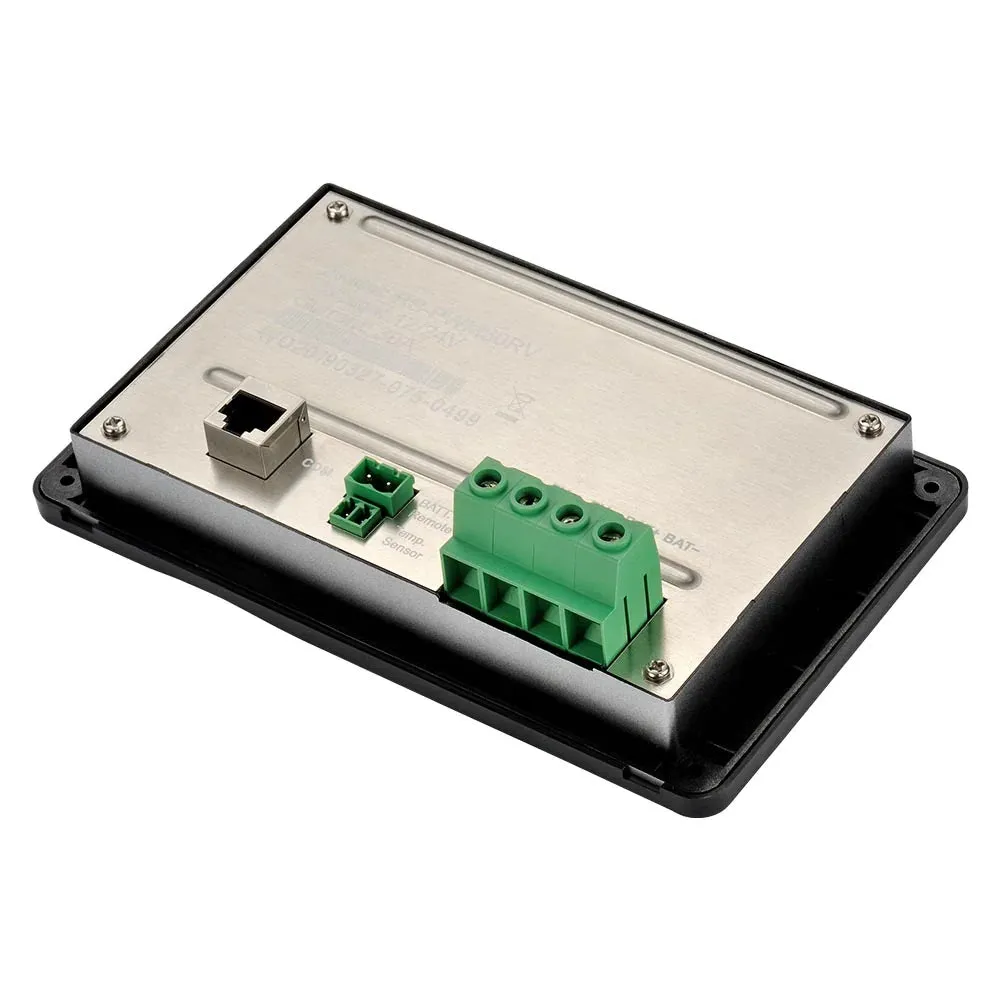

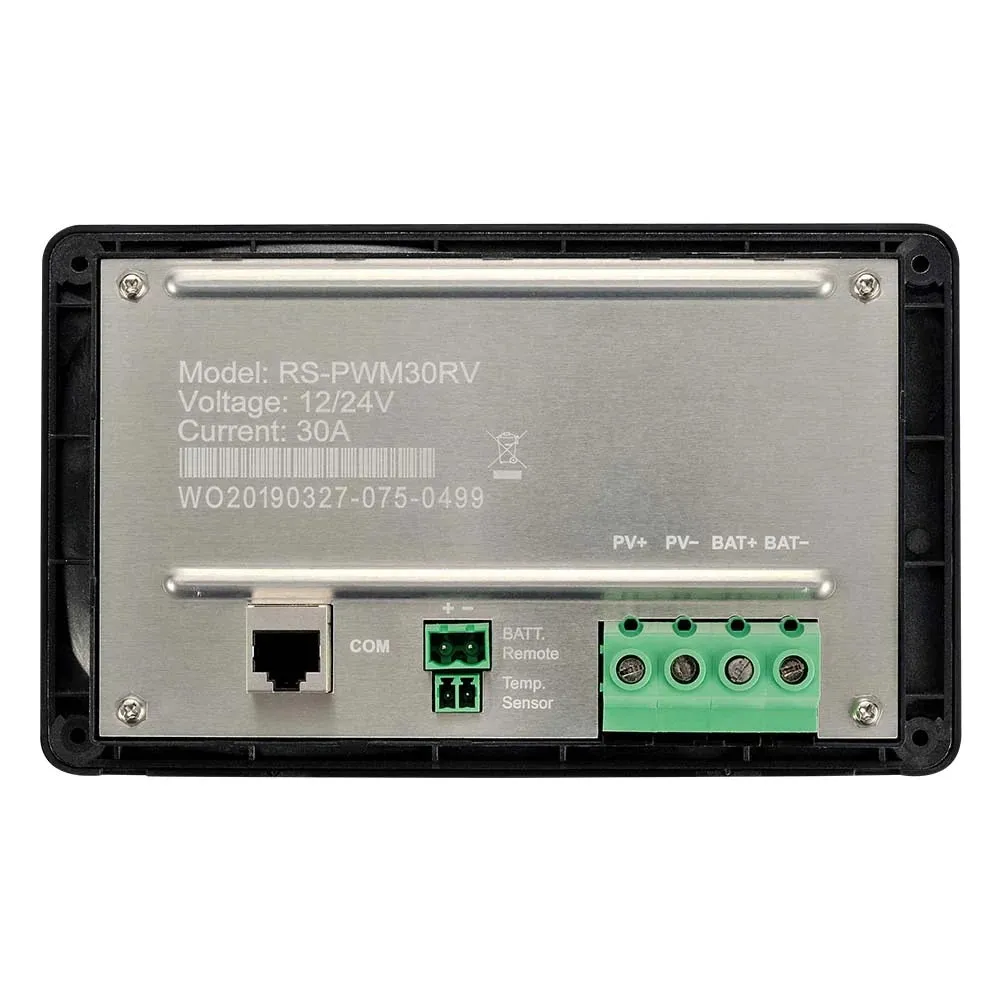

- RS485 communication port with Modbus protocol, and short circuit protection for 5V/200mA power supply
- Multiple communication peripherals
- Rated charging current at working temperature without de-rating
- Extensive electronic protections
- Monitor and set the parameters via PC software or APP
What's In The Box
- 1 x RICH SOLAR 30 Amp Solar Charge Controller Flush Mount
Rich Solar 30 Amp Solar Charge Controller Flush Mount Specifications
Electrical Specifications
| Nominal Voltage: | 12/24VDC or Auto |
| Battery Input Voltage Range: | 8V～32V |
| Rated Charge Current: | 30A |
| Max. PV Short Circuit Current: | 30A |
| Max. PV Open Circuit Voltage: | 50V |
| Battery Type: | Sealed(default)/Gel/Flooded |
| Self-consumption: | ≤4.2mA/12V;≤2.6mA/24V |
| Temperature Compensation Coefficient: | -3mV/°C/2V(Default) |
| Charge Circuit Voltage Drop: | 0.21V |
Environmental Parameters
| Storage Temperature Range: | -30°C～ 80°C |
| Working Environment Temperature: | -20°C～ 55°C(100% input and output) |
| Relative Humidity: | ≤95%, N.C. |
| Enclosure: | IP30 |
| Grounding: | Common negative |
| Altitude: | 5000m |
| Pollution Degree: | PD2 |
Mechanical Parameters
| Dimension(L×W×H): | 178.5×105.5×48.3mm |
| Mounting Dimension: | 166.5×93.5mm |
| Mounting Hole Size: | Φ5mm |
| Terminal: | 16mm2/6AWG |
| Recommended Cable: | 6mm2/10AWG |
| Net Weight: | 0.31kg |
